HZS4 ZENER DIODES

HZS4 Description

www.eicsemi.com HZS SERIES VZ : 4.0 - 36V PD : 400 mW .

HZS4 Features

* :
* Low leakage, low zener impedance
* Maximum power dissipation of 400 mW
* Lead / RoHS Free MECHANICAL DATA Case: DO-34 Glass Case Weight: approx. 0.093g ZENER DIODES DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.017 (0.43)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00 (25.4) min. Dim

📥 Download Datasheet

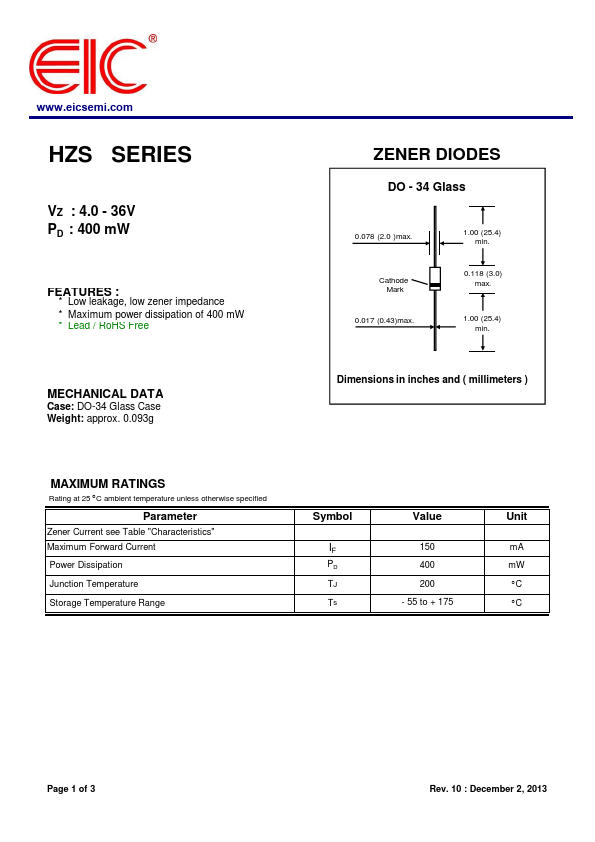

Preview of HZS4 PDF

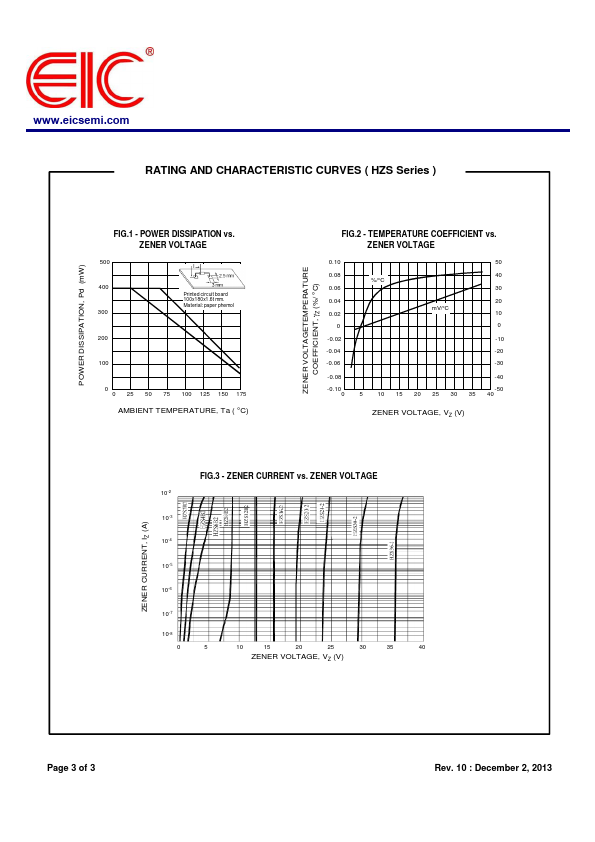

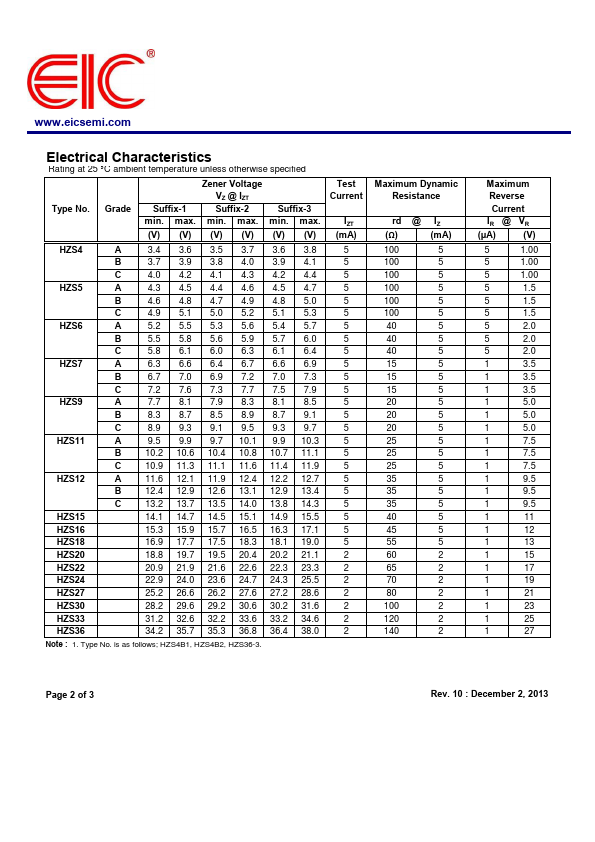

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HZS4
Manufacturer
EIC
File Size
133.58 KB
Datasheet
HZS4-EIC.pdf
Description
ZENER DIODES
