MBRF1545CT, MBRF1535CT Datasheet - EIC

MBRF1545CT, MBRF1535CT, Dual Schottky Barrier Rectifiers

MBRF1535CT Series Dual Schottky Barrier Rectifiers PRV : 35 - 60 Volts Io : 15 Ampere .

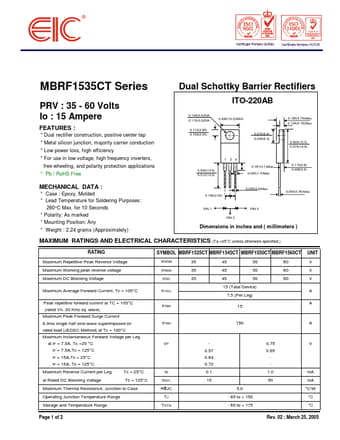

datasheet Preview Page 1 from Datasheet4u.com

MBRF1535CT-EIC.pdf

MBRF1545CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRF1545CT, MBRF1535CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRF1545CT, MBRF1535CT

Manufacturer:

EIC

File Size:

45.35 KB

Description:

Dual Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: MBRF1545CT, MBRF1535CT.
Please refer to the document for exact specifications by model.

Features

* :
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency

Applications

* Pb / RoHS Free ITO-220AB 0.134(3.4)DIA. 0.113(3.0)DIA. 0.112(2.85) 0.100(2.55) 0.406(10.3)MAX. 0.272(6.9) 0.248(6.3) 0.543(13.8) 0.512(13.2) 1 23 0.161(4.1)Max. 0.055(1.4)Max. 0.185(4.70)Max. 0.124(3.16)Max. 0.603(15.5) 0.573(14.8) 0.110(2.8) 0.098(2.5) MECHANICAL DATA :
* Case :
