P6KE20 - TRANSIENT VOLTAGE SUPPRESSOR

This page provides the datasheet information for the P6KE20, a member of the P6KE6.8 TRANSIENT VOLTAGE SUPPRESSOR family.

Datasheet Summary

Features

  • :.
  • Glass passivated jungtion chip.
  • 600W surge capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. ).
  • Typical IR less then 1mA above 10V.
  • Moisture Sensitivity Level 1 (Unlimited).
  • Pb / RoHS Free 0.142 (3.6) 0.102 (2.6) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 1.00 (25.4) MIN.

📥 Download Datasheet

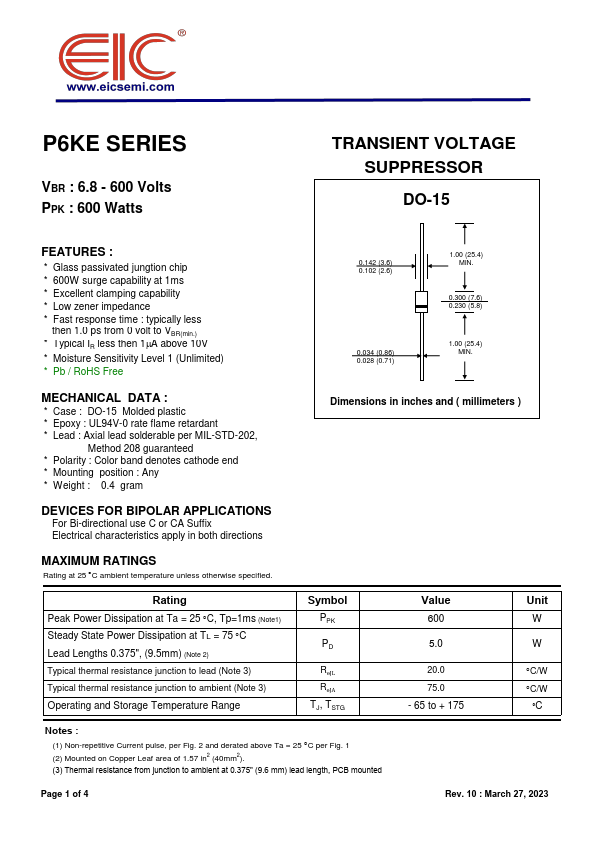

Datasheet preview – P6KE20

Datasheet Details

Part number P6KE20
Manufacturer EIC
File Size 476.63 KB
Description TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet P6KE20 Datasheet

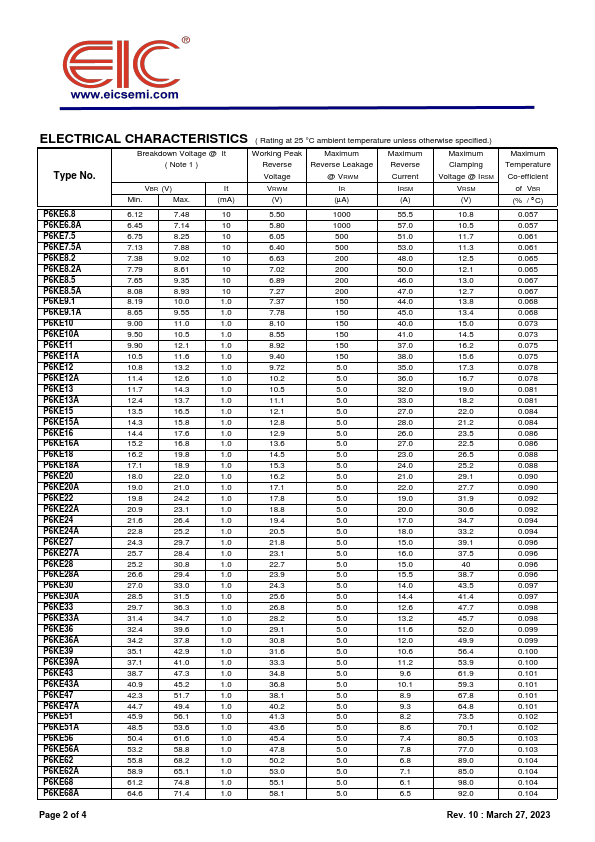

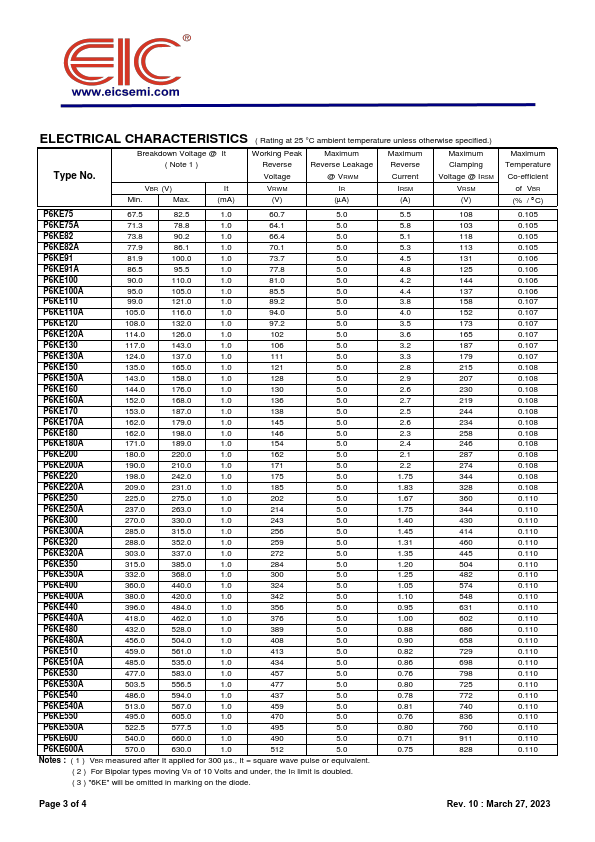

Additional preview pages of the P6KE20 datasheet.

📁 Similar Datasheet

  • P6KE20 - 6.8V - 440V Transient Voltage Suppressor (Taiwan Semiconductor)
  • P6KE20 - 600W TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • P6KE20 - TRANSIENT VOLTAGE SUPPRESSORS (UTC)
  • P6KE20 - 600 Watt TRANSIENT VOLTAGE SUPPRESSOR (Microsemi)
  • P6KE20 - UNI-DIRECTIONAL AND BI-DIRECTIONAL SILICON TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
  • P6KE20-G - 600W Transient Voltage Suppressor (Comchip)
  • P6KE20-HF - 600W Transient Voltage Suppressor (Comchip)
  • P6KE200 - 6.8V - 440V Transient Voltage Suppressor (Taiwan Semiconductor)
  • P6KE200 - 600W TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • P6KE200 - 600 Watt TRANSIENT VOLTAGE SUPPRESSOR (Microsemi)
Other Datasheets by EIC
  • P6KE200 - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE200A - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE20A - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE22 - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE220 - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE220A - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE22A - TRANSIENT VOLTAGE SUPPRESSOR
  • P6KE24 - TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text
P6KE SERIES VBR : 6.8 - 600 Volts PPK : 600 Watts TRANSIENT VOLTAGE SUPPRESSOR DO-15 FEATURES : * Glass passivated jungtion chip * 600W surge capability at 1ms * Excellent clamping capability * Low zener impedance * Fast response time : typically less then 1.0 ps from 0 volt to VBR(min.) * Typical IR less then 1mA above 10V * Moisture Sensitivity Level 1 (Unlimited) * Pb / RoHS Free 0.142 (3.6) 0.102 (2.6) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 1.00 (25.4) MIN. MECHANICAL DATA : * Case : DO-15 Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.
