P6KE200B - 600 Watt Peak Power Transient Voltage Suppressors

Datasheet Summary

Features

http://onsemi. com Cathode Anode.
Working Peak Reverse Voltage Range - 171 V Peak Power - 600 W @ 1.0 ms ESD Rating of Class 3 (>16 KV) per Human Body Model Maximum Clamp Voltage @ Peak Pulse Current Low Leakage < 5.0 mA above 171 V Maximum Temperature Coefficient Specified UL 497B for Isolated Loop Circuit Protection Response Time is Typically < 1.0 ns These are Pb-Free Devices.
AXIAL LEAD CASE 59AA.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	P6KE200B
Manufacturer	ON Semiconductor
File Size	144.23 KB
Description	600 Watt Peak Power Transient Voltage Suppressors
Datasheet	P6KE200B Datasheet

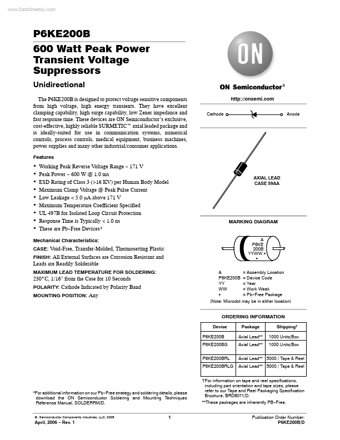

Additional preview pages of the P6KE200B datasheet.

📁 Similar Datasheet

P6KE200 - 6.8V - 440V Transient Voltage Suppressor (Taiwan Semiconductor)
P6KE200 - 600W TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
P6KE200 - 600 Watt TRANSIENT VOLTAGE SUPPRESSOR (Microsemi)
P6KE200 - TRANSIENT VOLTAGE SUPPRESSORS (UTC)
P6KE200 - UNI-DIRECTIONAL AND BI-DIRECTIONAL SILICON TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
P6KE200 - TRANSIENT VOLTAGE SUPPRESSOR (EIC)
P6KE200-G - 600W Transient Voltage Suppressor (Comchip)
P6KE200A - 6.8V - 440V Transient Voltage Suppressor (Taiwan Semiconductor)
P6KE200A - Transient Voltage Suppressors Diodes (Ruilon)
P6KE200A - 600W TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)

Other Datasheets by ON Semiconductor

P6KE200CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE20CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE22CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE24CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE27CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE100CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE10CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors
P6KE110CA - 600 Watt Peak Power Surmetic 40 Zener Transient Voltage Suppressors

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com P6KE200B 600 Watt Peak Power Transient Voltage Suppressors Unidirectional The P6KE200B is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low Zener impedance and fast response time. These devices are ON Semiconductor’s exclusive, cost-effective, highly reliable SURMETICt axial leaded package and is ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications. Features http://onsemi.com Cathode Anode • • • • • • • • • Working Peak Reverse Voltage Range - 171 V Peak Power - 600 W @ 1.
