RBV1501, RBV1500 SILICON BRIDGE RECTIFIERS

RBV1501 Description

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 RBV1500 - RBV1510 SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 15 Amperes.

RBV1501 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Rated isolation-voltage 2000 VAC
* Ideal for printed circuit board
* Very good heat dissipation
* Pb / RoHS Free MECHANICAL DATA :

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RBV1501, RBV1500. Please refer to the document for exact specifications by model.

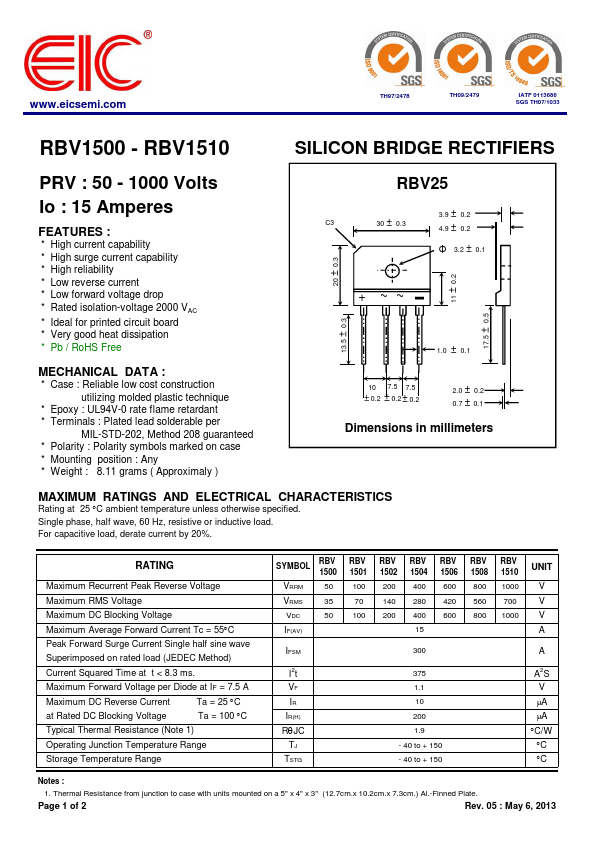

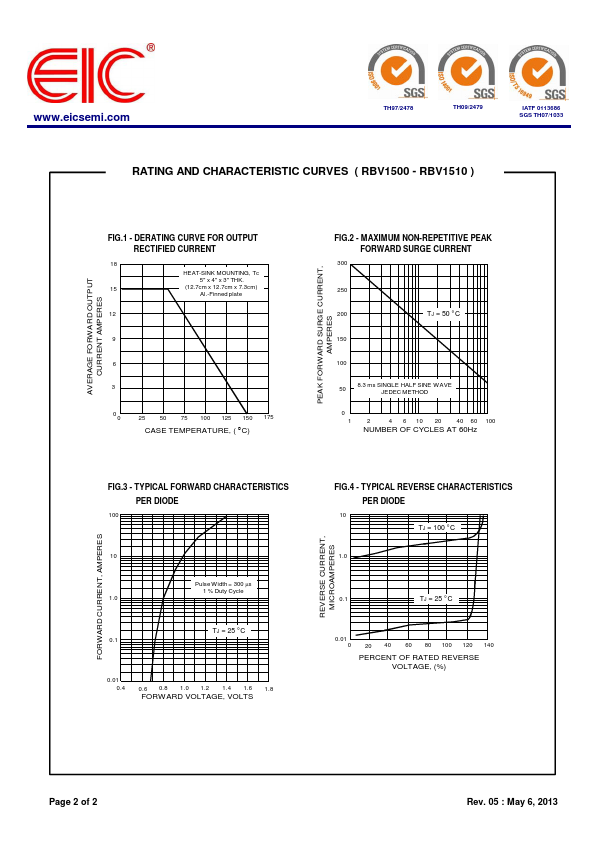

datasheet Preview Page 2

Datasheet Details

Part number
RBV1501, RBV1500
Manufacturer
EIC
File Size
65.95 KB
Datasheet
RBV1500-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: RBV1501, RBV1500.
Please refer to the document for exact specifications by model.
