RBV1502, RBV1500 - SILICON BRIDGE RECTIFIERS

EIC

📥 Download Datasheet

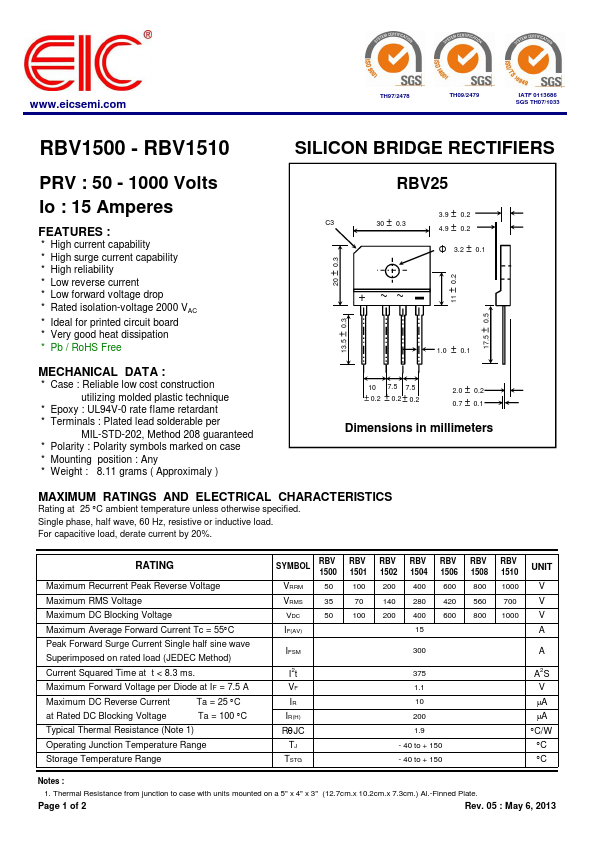

RBV1502 Datasheet Preview — This datasheet PDF includes multiple part numbers: RBV1502, RBV1500. Please refer to the document for exact specifications by model.

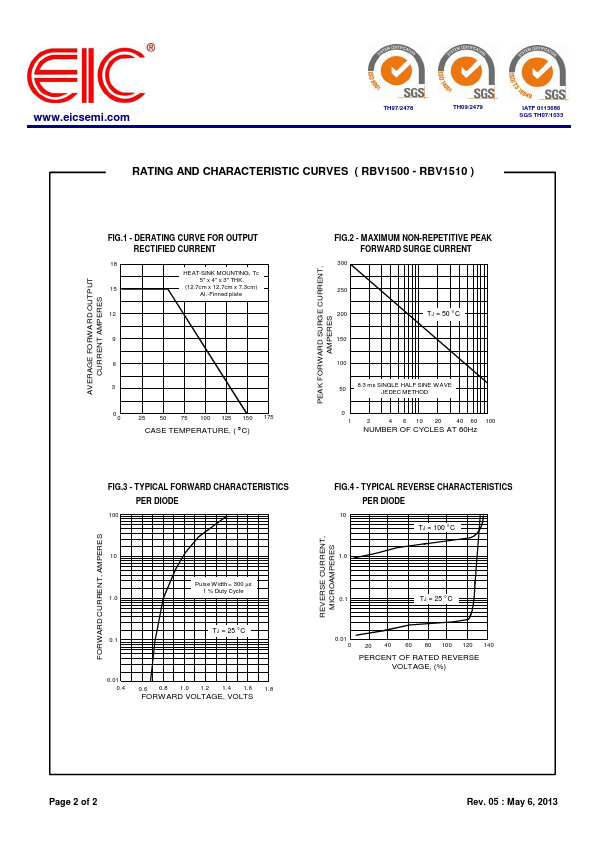

datasheet Preview Page 2

Datasheet Details

Part number	RBV1502, RBV1500
Manufacturer	EIC
File Size	65.95 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	RBV1500-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: RBV1502, RBV1500. Please refer to the document for exact specifications by model.

RBV1502 Product details

Features

:.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Rated isolation-voltage 2000 VAC.
Ideal for printed circuit board.
Very good heat dissipation.
Pb / RoHS Free.
