RBV2500D - SILICON BRIDGE RECTIFIERS

EIC

📥 Download Datasheet

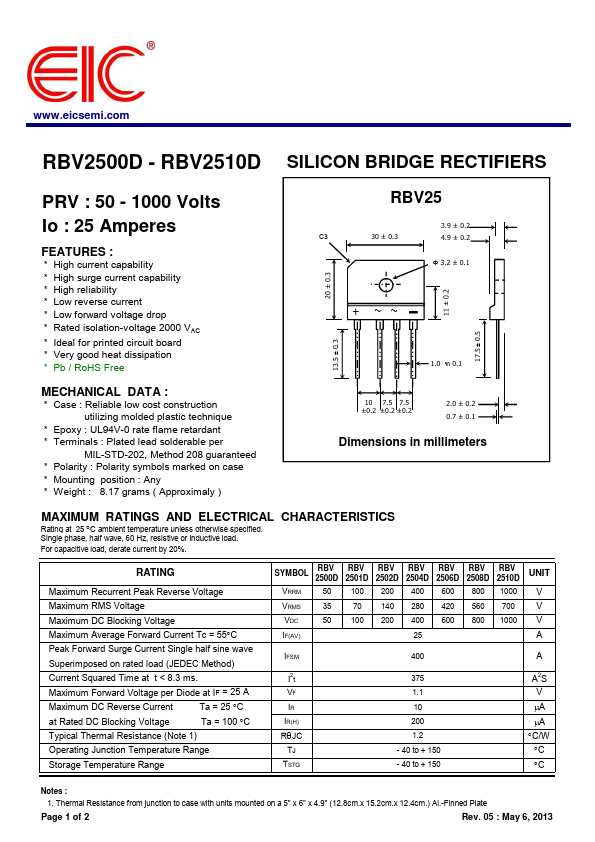

RBV2500D Datasheet Preview — Preview of RBV2500D PDF

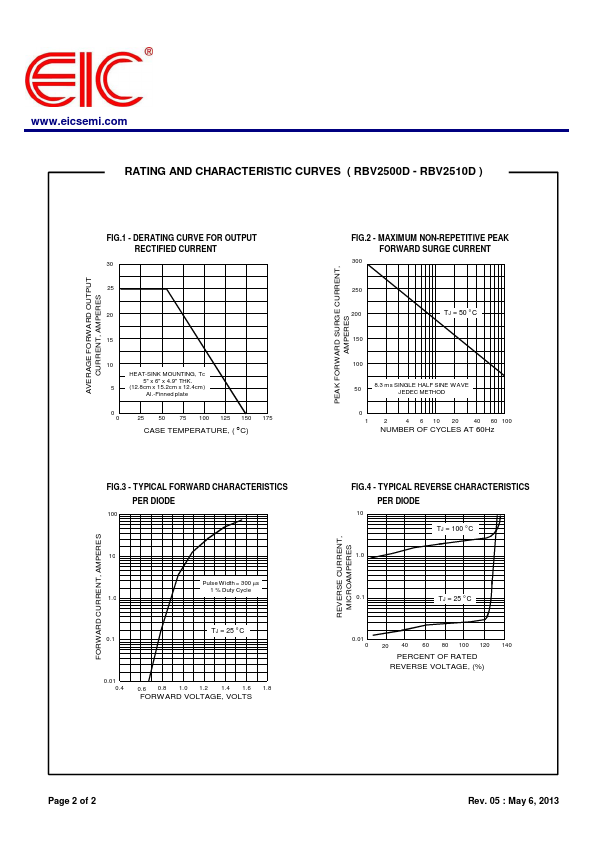

datasheet Preview Page 2

Datasheet Details

Part number	RBV2500D
Manufacturer	EIC
File Size	94.03 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	RBV2500D-EIC.pdf

RBV2500D Product details

Features

:.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Rated isolation-voltage 2000 VAC.
Ideal for printed circuit board.
Very good heat dissipation.
Pb / RoHS Free 13.5 ± 0.3 RBV25 3.9 ± 0.2 C3 30 ± 0.3 4.9 ± 0.2 Φ 3.2 ± 0.1 20 ± 0.3 + ~~ 1.0 ฑ 0.1 11 ± 0.2 17.5 ± 0.5.
