RBV2506D, RBV2500D SILICON BRIDGE RECTIFIERS

RBV2506D Description

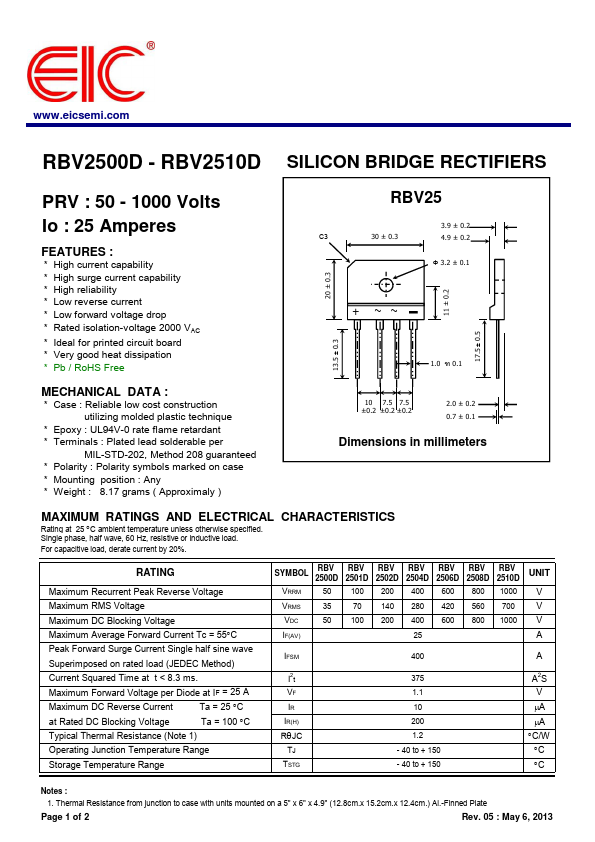

www.eicsemi.com RBV2500D - RBV2510D SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 25 Amperes .

RBV2506D Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Rated isolation-voltage 2000 VAC
* Ideal for printed circuit board
* Very good heat dissipation
* Pb / RoHS Free 13.5 ± 0.3 RBV25 3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RBV2506D, RBV2500D. Please refer to the document for exact specifications by model.

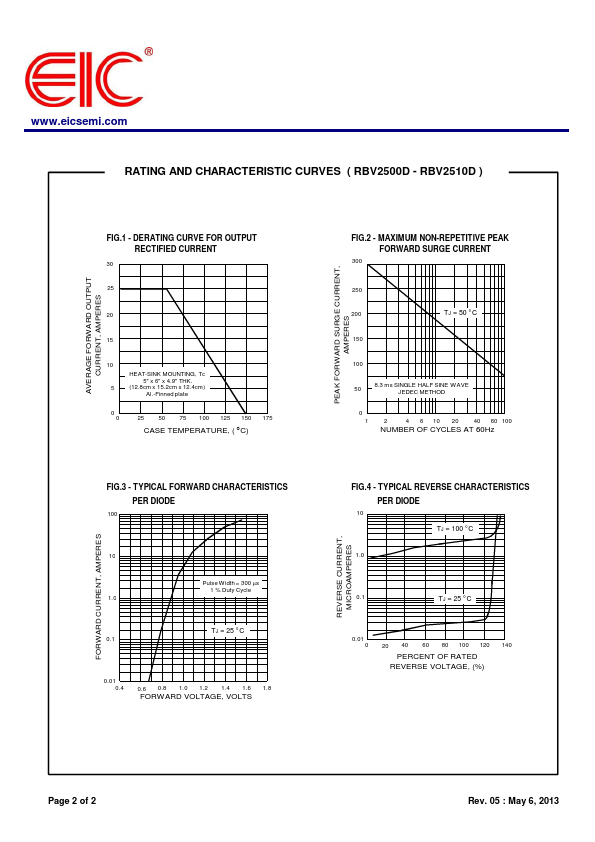

datasheet Preview Page 2

Datasheet Details

Part number
RBV2506D, RBV2500D
Manufacturer
EIC
File Size
94.03 KB
Datasheet
RBV2500D-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: RBV2506D, RBV2500D.
Please refer to the document for exact specifications by model.
