RLZ7.5B - ZENER DIODES

Product Overview

EIC

📥 Download Datasheet

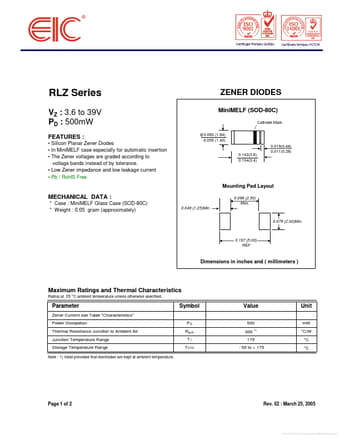

RLZ7.5B ZENER DIODES by EIC - Datasheet Preview — Datasheet preview – RLZ7.5B

Datasheet Details

Part number	RLZ7.5B
Manufacturer	EIC
File Size	49.74 KB
Description	ZENER DIODES
Datasheet	RLZ7.5B Datasheet
Note	This datasheet PDF includes multiple part numbers: RLZ7.5B, RLZ. Please refer to the document for exact specifications by model.
Additional preview pages of the RLZ7.5B datasheet.

Product details

Features

:.
Silicon Planar Zener Diodes.
In MiniMELF case especially for automatic insertion.
The Zener voltages are graded according to voltage bands instead of by tolerance.
Low Zener impedance and low leakage current.
Pb / RoHS Free ZENER DIODES MiniMELF (SOD-80C) Cathode Mark φ 0.063 (1.64) 0.055 (1.40) 0.019(0.48) 0.011(0.28) 0.142(3.6) 0.134(3.4) Mounting Pad Layout.
