S3ABF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

EIC

Description

www.eicsemi.com S3ABF THRU S3MBF Reverse Voltage * 50 to 1000 V Forward Current * 3 A .

📥 Download Datasheet

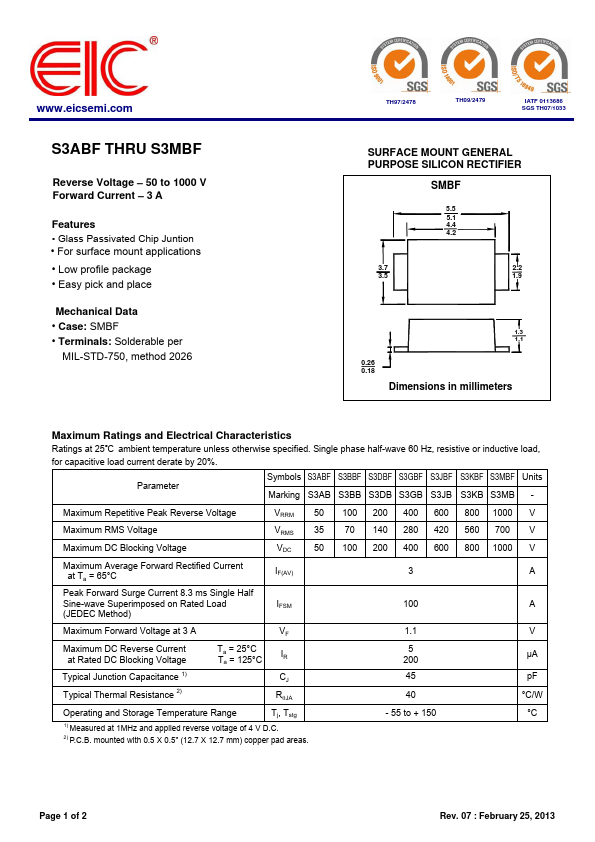

S3ABF Datasheet Preview — Preview of S3ABF PDF

Datasheet Specifications

Part number: S3ABF
Manufacturer: EIC
File Size: 521.96 KB
Datasheet: S3ABF-EIC.pdf
Description: SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

Features

* Glass Passivated Chip Juntion

Applications

* Low profile package
* Easy pick and place Mechanical Data
* Case: SMBF
* Terminals: Solderable per MIL-STD-750, method 2026 TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER SMBF 5.5 5.1 4.4 4.2 3.7 2.2 3.5 1.9 1
