S50VB80 SILICON BRIDGE RECTIFIER

S50VB80 Description

www.eicsemi.com S50VB80 SILICON BRIDGE RECTIFIER PRV : 800 Volts Io : 50 Amperes BR50 0.728(18.50) 0.688(17.40) .

S50VB80 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally mounted in the bridge

📥 Download Datasheet

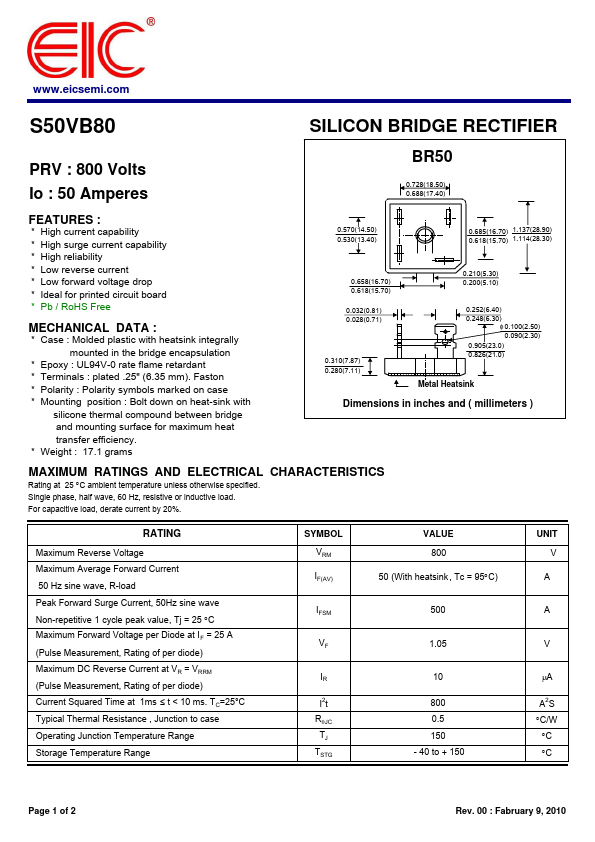

Preview of S50VB80 PDF

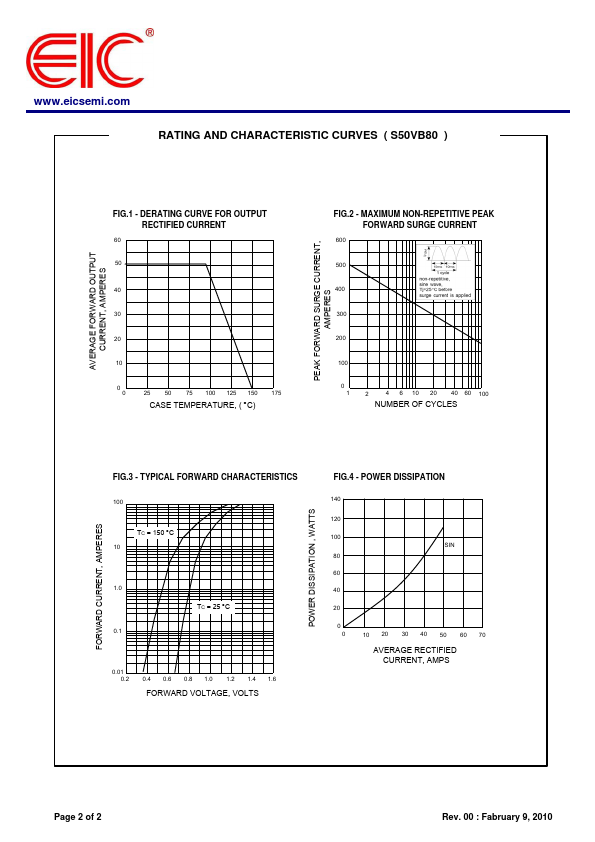

datasheet Preview Page 2

Datasheet Details

Part number
S50VB80
Manufacturer
EIC
File Size
97.14 KB
Datasheet
S50VB80-EIC.pdf
Description
SILICON BRIDGE RECTIFIER
