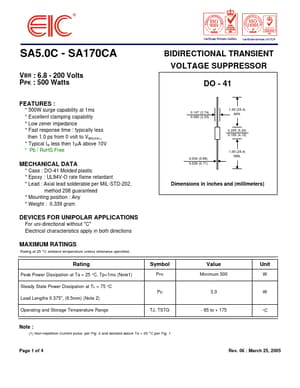

datasheet Preview Page 1 from Datasheet4u.com

SA30CA, SA30C BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

SA5.0C - SA170CA VBR : 6.8 - 200 Volts PPK : 500 Watts BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR DO - 41 .

SA30C-EIC.pdf

SA30CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SA30CA, SA30C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SA30CA, SA30C

Manufacturer:

EIC

File Size:

64.54 KB

Description:

BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: SA30CA, SA30C.
Please refer to the document for exact specifications by model.

Features

* :
* 500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V
* Pb / RoHS Free MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epox

Applications

* For uni-directional without "C" Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at TL = 75 °C Lead Lengths 0.375", (9.5mm) (N
