SB180 - SCHOTTKY BARRIER RECTIFIER DIODES

This page provides the datasheet information for the SB180, a member of the SB120 SCHOTTKY BARRIER RECTIFIER DIODES family.

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • High efficiency.
  • Low power loss.
  • Low forward voltage drop.
  • Low cost.
  • Pb / RoHS Free DO - 41 0.107 (2.74) 0.080 (2.03) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.20) 0.160 (4.10) 1.00 (25.4) MIN.

📥 Download Datasheet

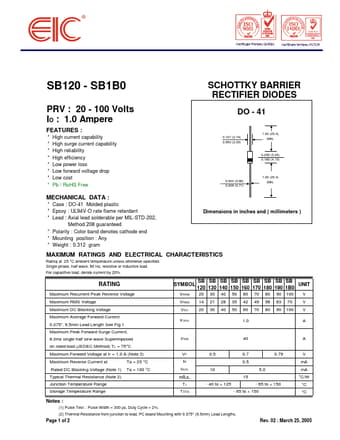

Datasheet preview – SB180

Datasheet Details

Part number SB180
Manufacturer EIC
File Size 30.61 KB
Description SCHOTTKY BARRIER RECTIFIER DIODES
Datasheet download datasheet SB180 Datasheet
Additional preview pages of the SB180 datasheet.

📁 Similar Datasheet

  • SB180 - 1 AMPERE SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
  • SB180 - 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • SB180 - SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
  • SB180 - Schottky Rectifiers (Fairchild Semiconductor)
  • SB180 - Schottky Barrier Rectifiers (LRC)
  • SB180 - 1.0A SCHOTTKY BARRIER DIODE (WON-TOP)
  • SB180 - SCHOTTKY BARRIER RECTIFIERS (CDIL)
  • SB180 - Schottky Barrier Rectifiers (LGE)
  • SB180 - SCHOTTKY BARRIER RECTIFIER (SEMTECH)
  • SB180-E-41C - SCHOTTKY BARRIER RECTIFIER (Gulf Semiconductor)
Other Datasheets by EIC
  • SB120 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB130 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB140 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB150 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB160 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB170 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB190 - SCHOTTKY BARRIER RECTIFIER DIODES
  • SB1B0 - SCHOTTKY BARRIER RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
SB120 - SB1B0 SCHOTTKY BARRIER RECTIFIER DIODES PRV : 20 - 100 Volts IO : 1.0 Ampere FEATURES : * High current capability * High surge current capability * High reliability * High efficiency * Low power loss * Low forward voltage drop * Low cost * Pb / RoHS Free DO - 41 0.107 (2.74) 0.080 (2.03) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.20) 0.160 (4.10) 1.00 (25.4) MIN. MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.312 gram Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
