SB1B0, SB120 SCHOTTKY BARRIER RECTIFIER DIODES

SB1B0 Description

SB120 - SB1B0 SCHOTTKY BARRIER RECTIFIER DIODES PRV : 20 - 100 Volts IO : 1.0 Ampere .

SB1B0 Features

* :
* High current capability
* High surge current capability
* High reliability
* High efficiency
* Low power loss
* Low forward voltage drop
* Low cost
* Pb / RoHS Free DO - 41 0.107 (2.74) 0.080 (2.03) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.20) 0.160

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1B0, SB120. Please refer to the document for exact specifications by model.

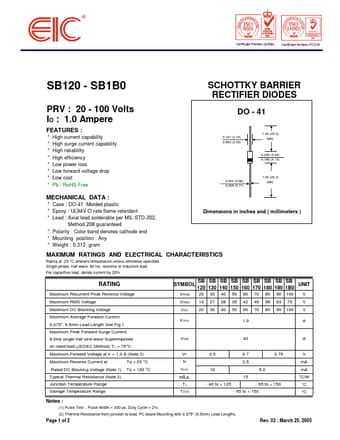

datasheet Preview Page 2

Datasheet Details

Part number
SB1B0, SB120
Manufacturer
EIC
File Size
30.61 KB
Datasheet
SB120-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: SB1B0, SB120.
Please refer to the document for exact specifications by model.
