SDB110W, SDB12W Surface Mount Schottky Barrier Rectifier

SDB110W Description

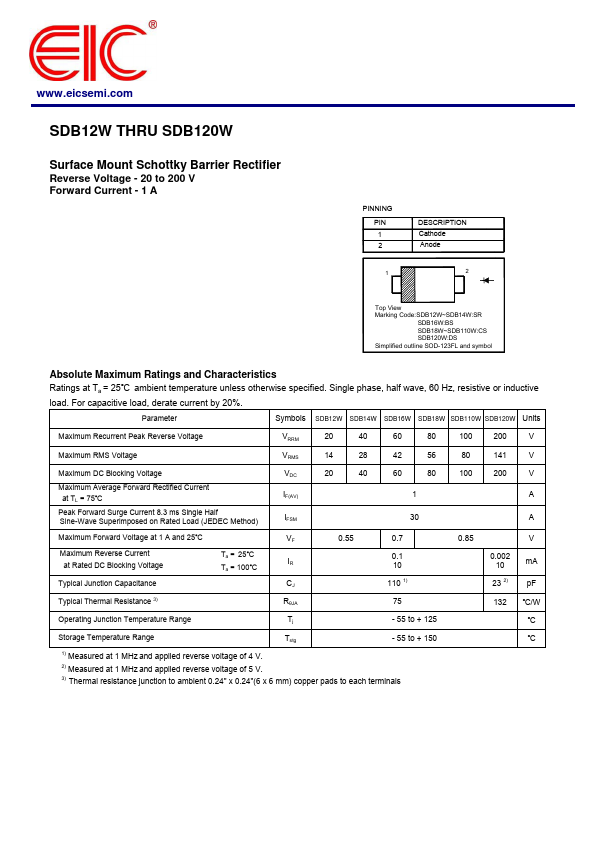

www.eicsemi.com SDB12W THRU SDB120W Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 1 A PINNING PIN 1 2 1 .
Cathode Anode 2 Top View Marking Code:SDB12W~SDB14W:SR SDB16W:BS SDB18W~SDB110W:CS SDB120W:DS Simplified outline SOD-123FL and symbol Absolute Maxim.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDB110W, SDB12W. Please refer to the document for exact specifications by model.

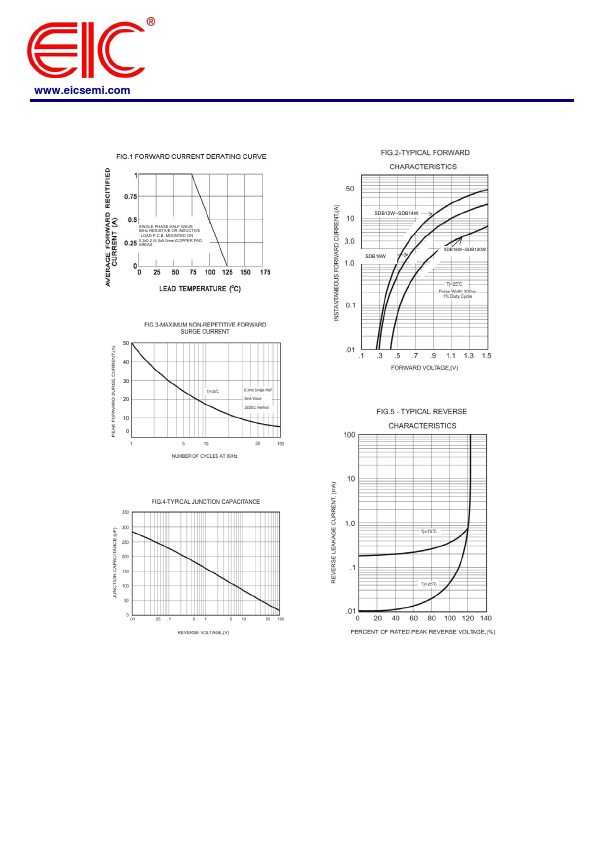

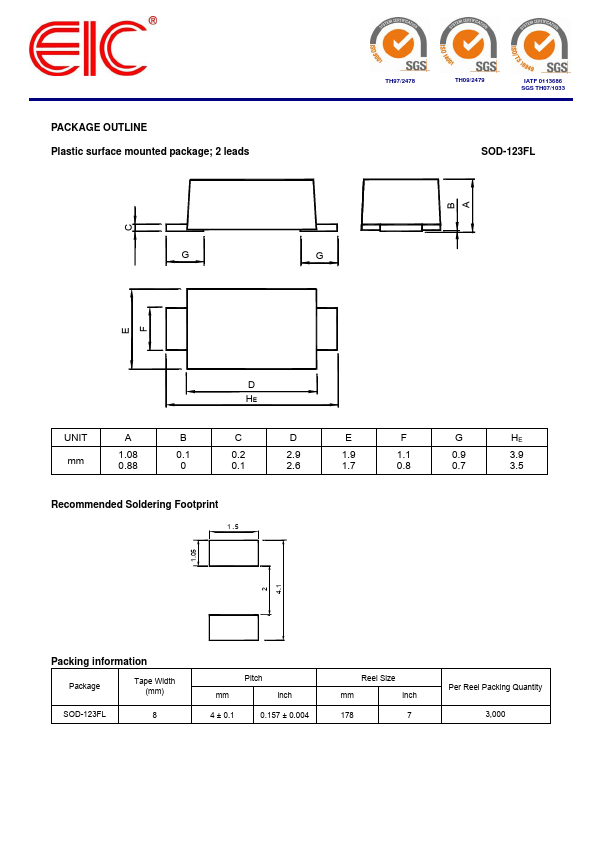

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDB110W, SDB12W
Manufacturer
EIC
File Size
438.39 KB
Datasheet
SDB12W-EIC.pdf
Description
Surface Mount Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SDB110W, SDB12W.
Please refer to the document for exact specifications by model.
