SDB12W - Surface Mount Schottky Barrier Rectifier

Datasheet Summary

Description

Ratings at Ta = 25℃ ambient temperature unless otherwise specified.

📥 Download Datasheet

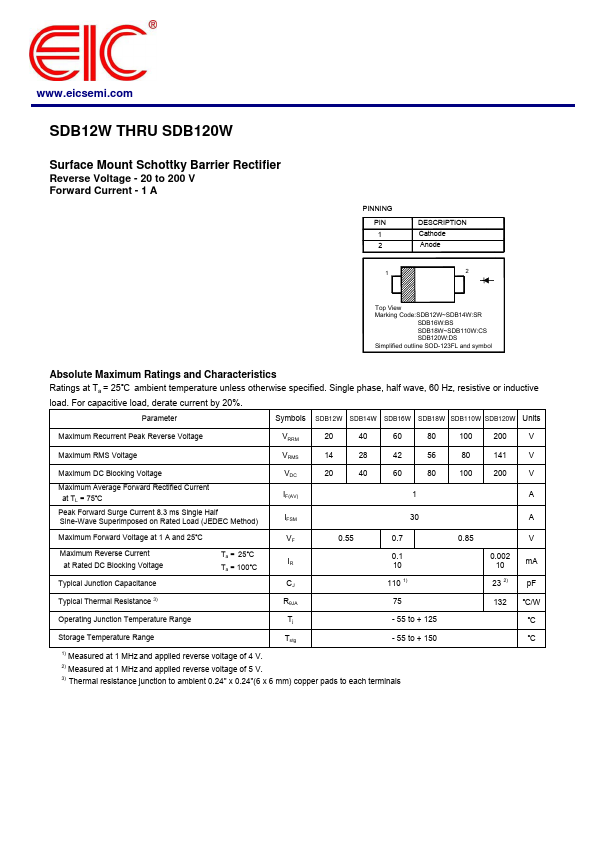

Datasheet preview – SDB12W

Datasheet Details

Part number SDB12W
Manufacturer EIC
File Size 438.39 KB
Description Surface Mount Schottky Barrier Rectifier
Datasheet download datasheet SDB12W Datasheet

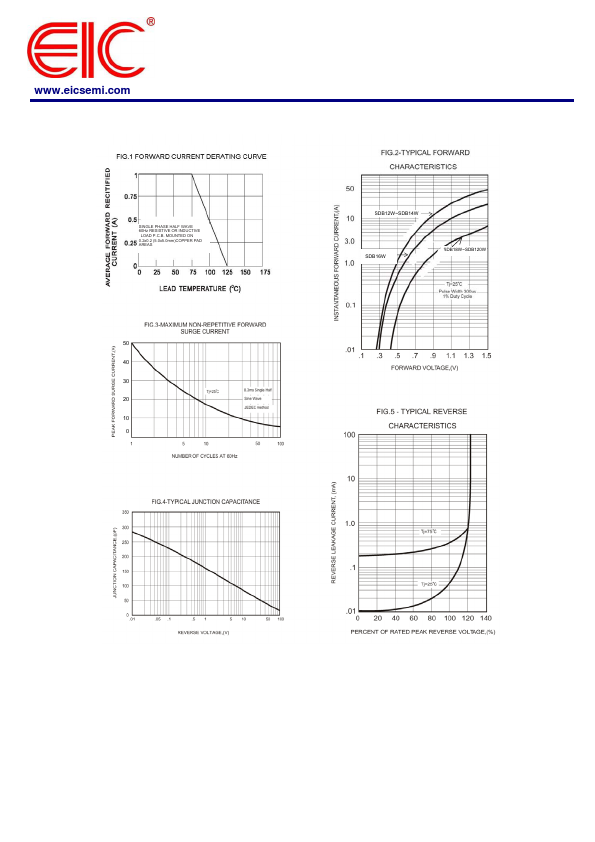

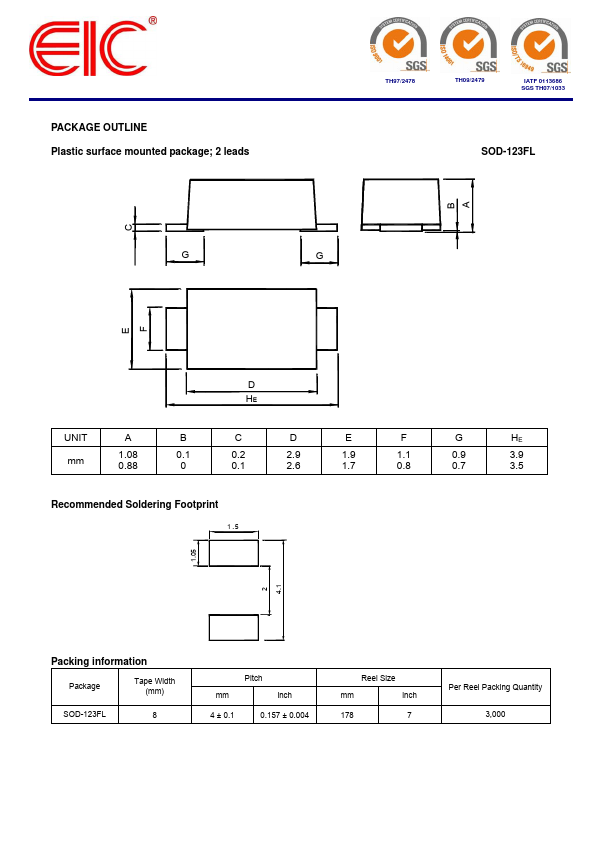

Additional preview pages of the SDB12W datasheet.

📁 Similar Datasheet

  • SDB12W - Surface Mount Schottky Barrier Rectifier (SEMTECH)
  • SDB12 - (SDB12 - SDB110) Schottky Barrier Rectifiers (Taiwan Semiconductor Company)
  • SDB12 - Schottky Barrier Bridge Rectifiers (LGE)
  • SDB1200 - Schottky Barrier Rectifier (KODENSHI)
  • SDB120FW - Schottky Barrier Rectifier (SEMTECH)
  • SDB120G - Schottky Barrier Rectifier (KODENSHI)
  • SDB120W - Surface Mount Schottky Barrier Rectifier (SEMTECH)
  • SDB12FW - Schottky Barrier Rectifier (SEMTECH)
  • SDB101 - (SDB101 - SDB107) 1 Amp Single Phase Glass Passivated Bridge Rectifier (Micro Commercial Components)
  • SDB10100D - HIGH VOLTAGE SCHOTTKY RECTIFIER (AUK)
Other Datasheets by EIC
  • SDB120W - Surface Mount Schottky Barrier Rectifier
  • SDB110W - Surface Mount Schottky Barrier Rectifier
  • SDB14W - Surface Mount Schottky Barrier Rectifier
  • SDB16W - Surface Mount Schottky Barrier Rectifier
  • SDB18W - Surface Mount Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text
www.eicsemi.com SDB12W THRU SDB120W Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 1 A PINNING PIN 1 2 1 DESCRIPTION Cathode Anode 2 Top View Marking Code:SDB12W~SDB14W:SR SDB16W:BS SDB18W~SDB110W:CS SDB120W:DS Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Characteristics Ratings at Ta = 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
