SE2R - HIGH VOLTAGE ULTRAFAST RECTIFIER DIODE

EIC

📥 Download Datasheet

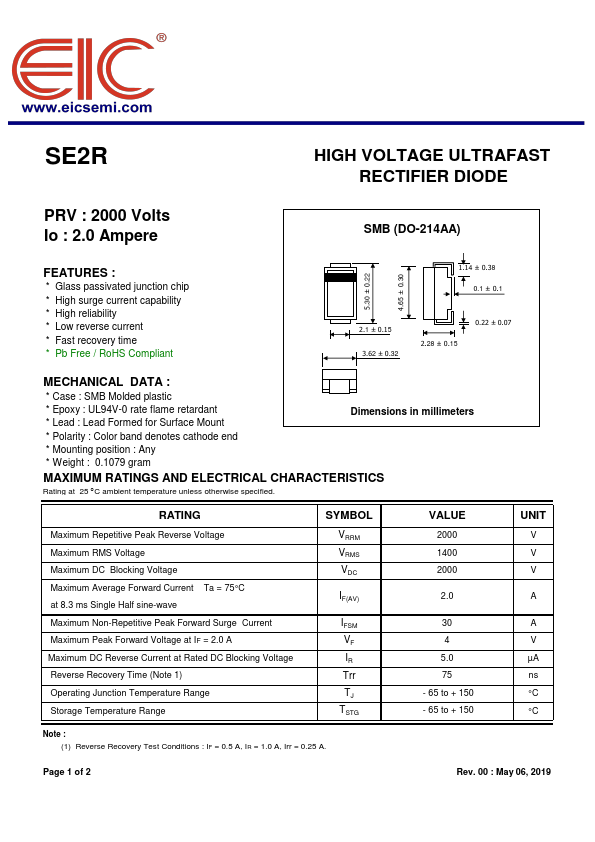

SE2R Datasheet Preview — Preview of SE2R PDF

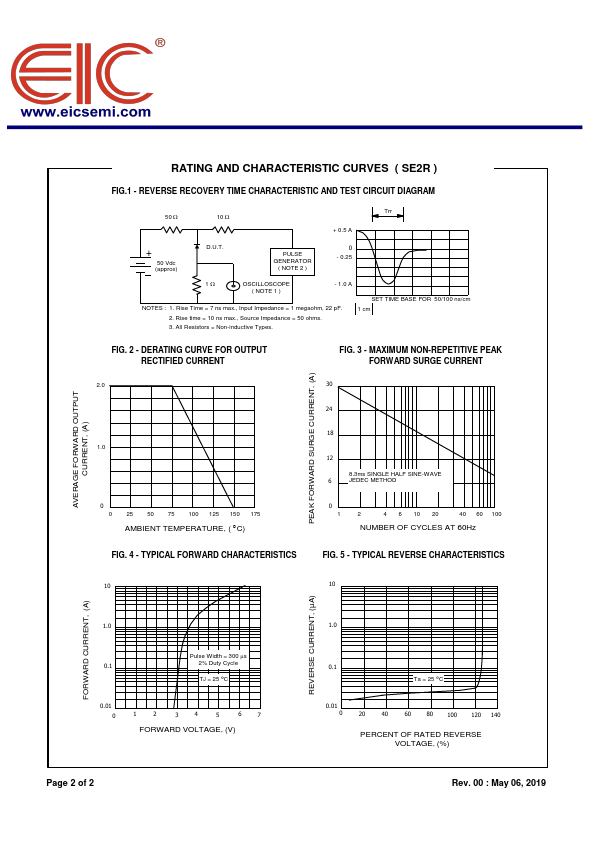

datasheet Preview Page 2

Datasheet Details

Part number	SE2R
Manufacturer	EIC
File Size	153.52 KB
Description	HIGH VOLTAGE ULTRAFAST RECTIFIER DIODE
Datasheet	SE2R-EIC.pdf

SE2R Product details

Features

:.
Glass passivated junction chip.
High surge current capability.
High reliability.
Low reverse current.
Fast recovery time.
Pb Free / RoHS Compliant 5.30 ± 0.22 4.65 ± 0.30 1.14 ± 0.38 0.1 ± 0.1 2.1 ± 0.15 3.62 ± 0.32 2.28 ± 0.15 0.22 ± 0.07.
