SETG, SETA SURFACE MOUNT HIGH EFFICIENT RECTIFIERS

SETG Description

www.eicsemi.com SETA - SETM PRV : 50 - 1000 Volts Io : 2.5 Amperes .

SETG Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb Free / RoHS Compliant SURFACE MOUNT HIGH EFFICIENT RECTIFIERS SMB (DO-214AA) 0.174 (4.425) 0.172 (4.3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SETG, SETA. Please refer to the document for exact specifications by model.

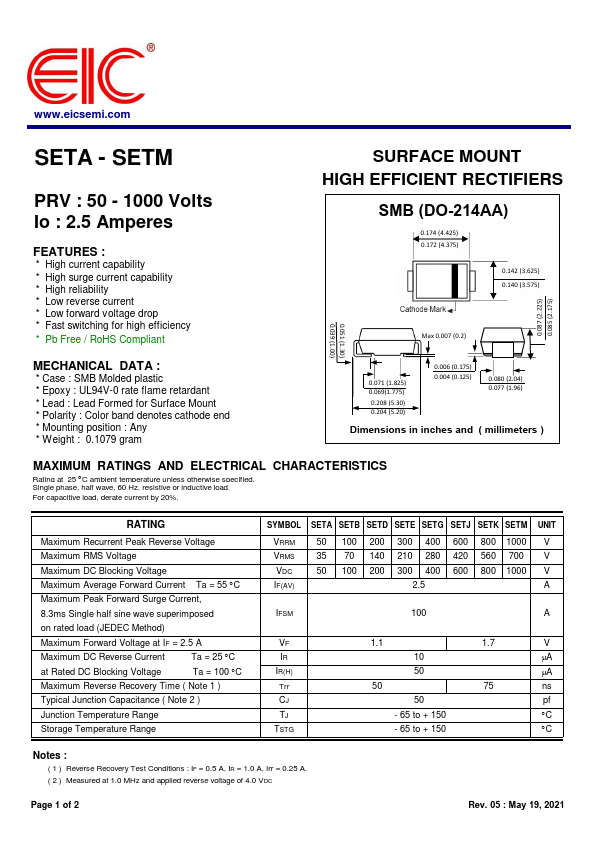

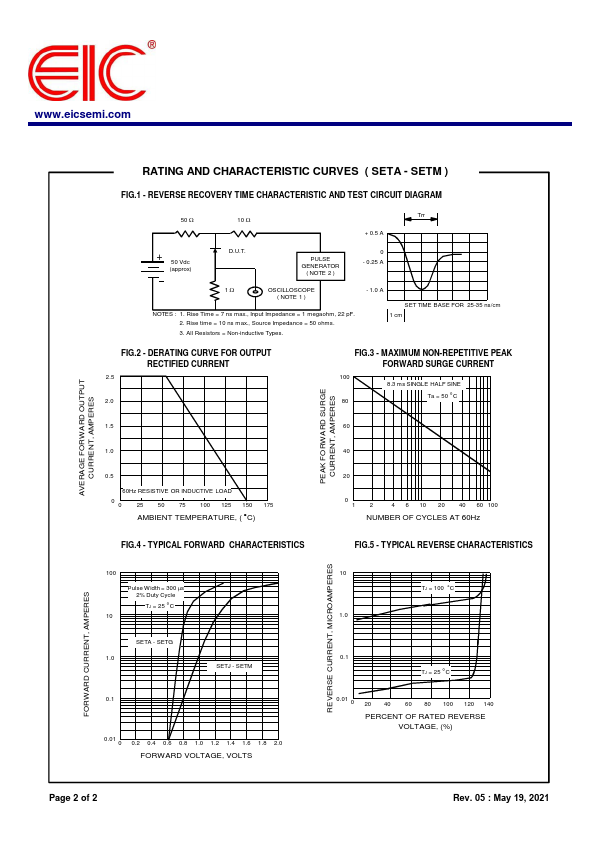

datasheet Preview Page 2

Datasheet Details

Part number
SETG, SETA
Manufacturer
EIC
File Size
181.25 KB
Datasheet
SETA-EIC.pdf
Description
SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SETG, SETA.
Please refer to the document for exact specifications by model.
