SM8S20C, SM8S10C Datasheet - EIC

SM8S20C SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

SM8S20C Features

* :

* Excellent clamping capability

* Low incremental surge resistance

* Fast response time : typically less then 1.0 ps from 0 volt to V BR(min.)

* Dual Diode construction

* Pb / RoHS Free MECHANICAL DATA

* Case : D2PAK(TO-263)

* Epoxy : UL94V-O rate flame retardant

SM8S10C-EIC.pdf

This datasheet PDF includes multiple part numbers: SM8S20C, SM8S10C. Please refer to the document for exact specifications by model.

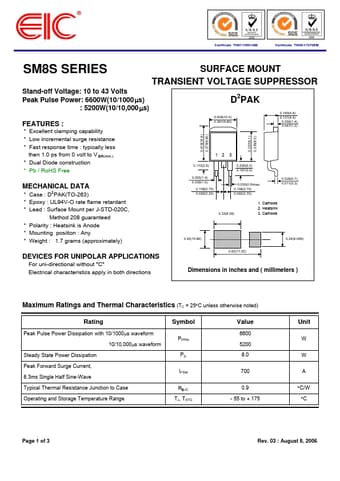

SM8S20C Datasheet Preview Page 2 SM8S20C Datasheet Preview Page 3

Datasheet Details

Part number:

SM8S20C, SM8S10C

Manufacturer:

EIC

File Size:

118.88 KB

Description:

Surface mount transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: SM8S20C, SM8S10C.
Please refer to the document for exact specifications by model.
