SM8S22 Datasheet - Yint

SM8S22 Transient Voltage Suppressor Diode

SM8 Series SM8 Transient Voltage Suppressor Diode Series General Information The SM8 series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SM8 series is supplied in YINT Semiconductor’s exclusive, cost-effective, highly reliable and is ideally suited for use in communication systems, automotive, numerical controls , process controls, me.

SM8S22 Features

* Case: DO-218AB

* For surface mounted applications in order to optimize board space.

* Polarity:Color band denoted positive end (cathode) except Bidirectional.

* Typical failure mode is short from over-specified voltage or current

* High Temperature soldering:260°C/10 seconds at

SM8S22 Datasheet (290.54 KB)

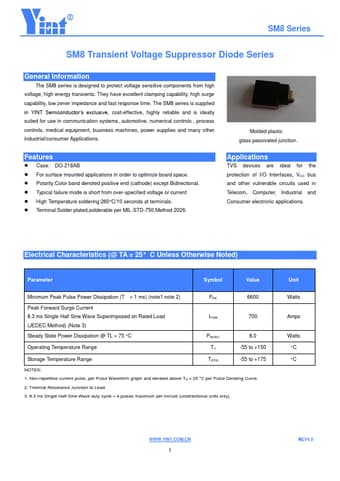

SM8S22 Datasheet Preview — Preview of SM8S22 PDF

Datasheet Details

Part number:

SM8S22

Manufacturer:

Yint

File Size:

290.54 KB

Description:

Transient voltage suppressor diode.
