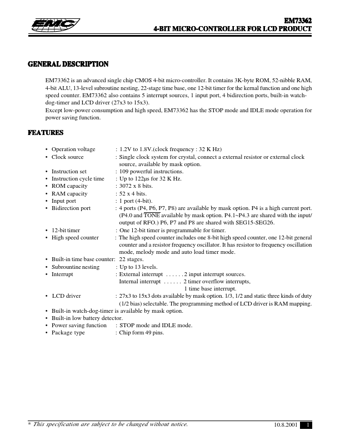

EM73362 4-BIT MICRO-CONTROLLER

EM73362 is an advanced single chip CMOS 4-bit micro-controller. It contains 3K-byte ROM, 52-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, one 12-bit timer for the kernal function and one high speed counter. EM73362 also contains 5 interrupt sources, 1 input port, 4 bidirect.

EM73362 Features

* Operation voltage

* Clock source

* : 1.2V to 1.8V.(clock frequency : 32 K Hz) : Single clock system for crystal, connect a external resistor or external clock source, available by mask option. Instruction set : 109 powerful
