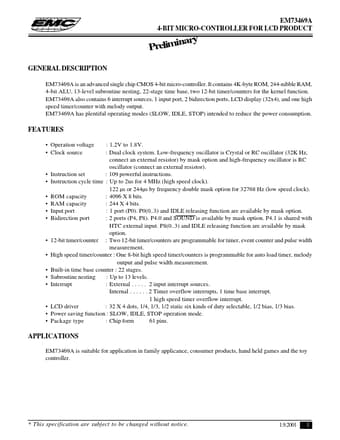

EM73469A 4-BIT MICRO-CONTROLLER

EM73469A is an advanced single chip CMOS 4-bit micro-controller. It contains 4K-byte ROM, 244-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73469A also contains 6 interrupt sources, 1 input port, 2 bidirection ports, LCD .

EM73469A Features

* Operation voltage

* Clock source : 1.2V to 1.8V. : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz, connect an external resistor) by mask option and high-frequency oscillator is RC oscillator (connect an external resistor). Instruction set : 109 powe
