EM83050H

KEYBOARD ENCODER

EM83050H Features

* Low cost - eliminate need external components. Phantom key detects. RC oscillator ( 1.8432MHz ). Support scan code set 1 ,2 and 3. Support PC XT/AT and PS/2 keyboard . Low power CM

EM83050H General Description

The EM83050H microcontroller is dedicated to a keyboard encoder ,specially designed for IBM PC XT/AT and all compatible machines. The EM83050H controll all scan codes, three LEDs status, scan timing and communications between the keyboard and PC. It is easy to implement a high performance, low cost .

EM83050H Datasheet (116.69 KB)

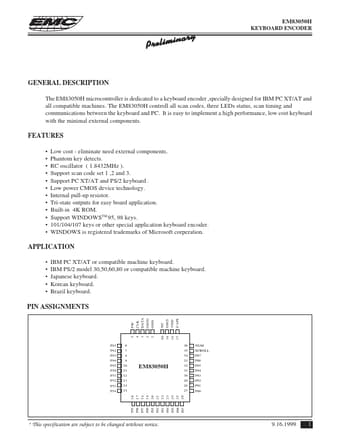

Preview of EM83050H PDF

Datasheet Details

Part number:

EM83050H

Manufacturer:

ELAN Microelectronics Corp

File Size:

116.69 KB

Description:

Keyboard encoder.
