EM83053BH

KEYBOARD ENCODER

EM83053BH Features

* Low cost - eliminate need external components. Phantom key detects. RC oscillator ( 1.8432MHz ). Support scan code set 1 ,2 and 3. Support PC AT and PS/2 keyboard . Low power CMOS

EM83053BH General Description

The EM83053A/BH microcontroller is dedicated to a keyboard encoder ,specially designed for IBM PC AT and all compatible machines. The EM83053A/BH controll all scan codes, three LEDs status, scan timing and communications between the keyboard and PC. It is easy to implement a high performance, low co.

EM83053BH Datasheet (210.02 KB)

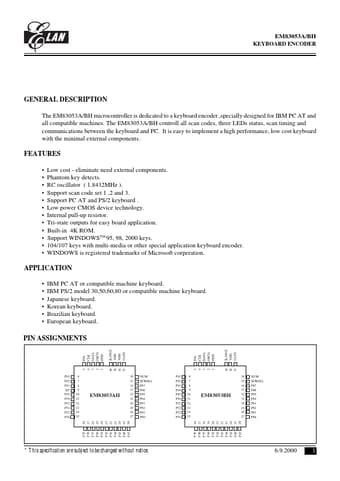

Preview of EM83053BH PDF

Datasheet Details

Part number:

EM83053BH

Manufacturer:

ELAN Microelectronics Corp

File Size:

210.02 KB

Description:

Keyboard encoder.
