EM91203, TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE

TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE EM91203 SERIES EM91203 SERIES GENERAL .
The EM91203 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 3 sets memories.

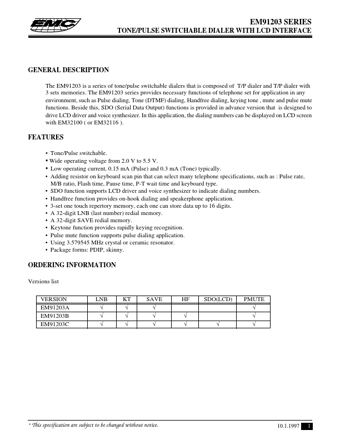

datasheet Preview Page 1 from Datasheet4u.com

EM91203_ELANMicroelectronicsCorp.pdf

EM91203 Datasheet Preview — Preview of EM91203 PDF

Datasheet Details

Part number:

EM91203

Manufacturer:

ELAN Microelectronics Corp

File Size:

143.68 KB

Description:

TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE

Features

* Tone/Pulse switchable.
* Wide operating voltage from 2.0 V to 5.5 V.
* Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.
* Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash ti

Applications

* This specification are subject to be changed without notice. 10.1.1997 4 EM91203 SERIES TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE Storing : EM91203 series support two operating methods to store numbers into SAVE redial memory. Method 1
* To select Pulse or Tone mode.
