EM91203B

TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE

EM91203B Features

* Tone/Pulse switchable.

* Wide operating voltage from 2.0 V to 5.5 V.

* Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.

* Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash ti

EM91203B General Description

The EM91203 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 3 sets memories. The EM91203 series provides necessary functions of telephone set for application in any environment, such as Pulse dialing, Tone (DTMF) dialing, Handfree dialing, keying tone .

EM91203B Datasheet (143.68 KB)

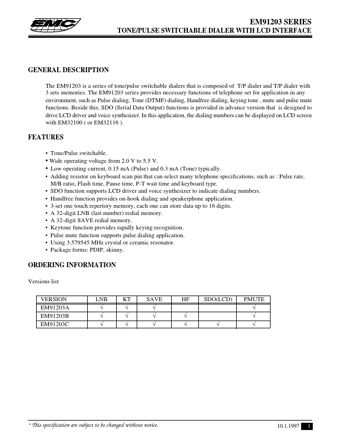

Preview of EM91203B PDF

Datasheet Details

Part number:

EM91203B

Manufacturer:

ELAN Microelectronics Corp

File Size:

143.68 KB

Description:

Tone/pulse switchable dialer with lcd interface.
