EM91420A - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE AND DUAL-TONE MELODY GENERATOR

Product Overview

ELAN Microelectronics Corp

Part number	EM91420A
Manufacturer	ELAN Microelectronics Corp
File Size	175.49 KB
Description	TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE AND DUAL-TONE MELODY GENERATOR
Datasheet	EM91420A Datasheet

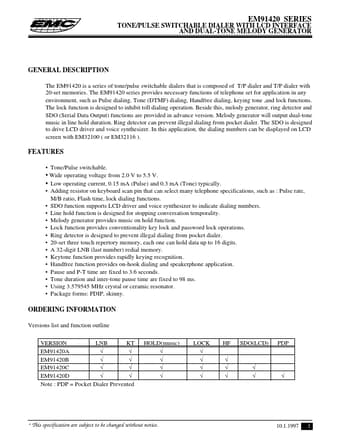

Additional preview pages of the EM91420A datasheet.

The EM91420 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 20-set memories.

Tone/Pulse switchable.
Wide operating voltage from 2.0 V to 5.5 V.
Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.
Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash time, lock dialing functions.
SDO function supports LCD driver and voice synthesizer to indicate dialing numbers.
Line hold function is designed for stopping conversation temporality.
