EM91420C TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE AND DUAL-TONE MELODY GENERATOR

The EM91420 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 20-set memories. The EM91420 series provides necessary functions of telephone set for application in any environment, such as Pulse dialing, Tone (DTMF) dialing, Handfree dialing, keying tone .

EM91420C Features

* Tone/Pulse switchable.

* Wide operating voltage from 2.0 V to 5.5 V.

* Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.

* Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash ti

EM91420C Datasheet (175.49 KB)

Preview of EM91420C PDF

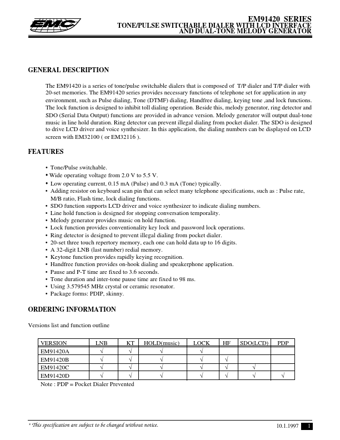

EM91420C Datasheet Preview Page 2 EM91420C Datasheet Preview Page 3

Datasheet Details

Part number:

EM91420C

Manufacturer:

ELAN Microelectronics Corp

File Size:

175.49 KB

Description:

Tone/pulse switchable dialer with lcd interface and dual-tone melody generator.
