EM92547A CALLER ID FSK DECODER

The EM92547 is a single-chip CMOS receiver IC designed to work in telephone equipment incorporating Calling Number Delivery (CND) capabilities. CND capabilities can be add to equipment such as telephone, adjunct units, answering machines, and facsimile machines, by using the EM92547 and any standard.

EM92547A Features

* Compatible with Bellcore GR-30-CORE (formerly as TR-NWT-000030).

* Compatible with British Telecom (BT) SIN227 & SIN242.

* FSK demodulator for Bell 202 and ITU-T V.23 (formerly as CCITT V.23)

* On-chip ring detector

* Ring detect and carrier detect output fo

EM92547A Datasheet (136.00 KB)

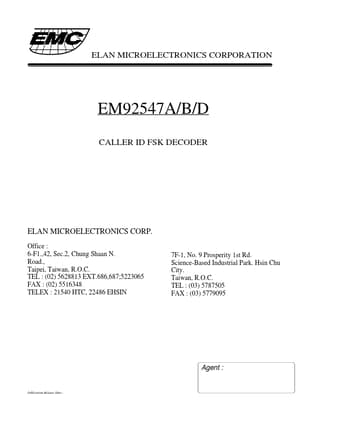

EM92547A Datasheet Preview — Preview of EM92547A PDF

Datasheet Details

Part number:

EM92547A

Manufacturer:

ELAN Microelectronics Corp

File Size:

136.00 KB

Description:

Caller id fsk decoder.
