EM61000 Datasheet - ELAN Microelectronics

8-Channel Wave-Table Music Synthesizer

EM61000 Features

* will inspire the user to realize a wide variety of ideas. 2. FEATURES Operating voltage: 2.4 ~ 5.5V. 8-bit RISC CPU. Three general-purpose timers. 8K word program ROM access and 8-level stacks. Multi melody channels can be played simultaneously (8 channels for EM61100~ EM61400, 4 channels for EM610

EM61000 General Description

EM61000 series is an 8-bit micro-controller based music processor IC with audio function that delivers 8 channels instrument playback. The micro-controller includes a powerful 8-bit RISC CPU to handle most of the music functions, an 8K words program ROM, and a voice ROM that extends up to 512K bytes.

EM61000 Datasheet (1.21 MB)

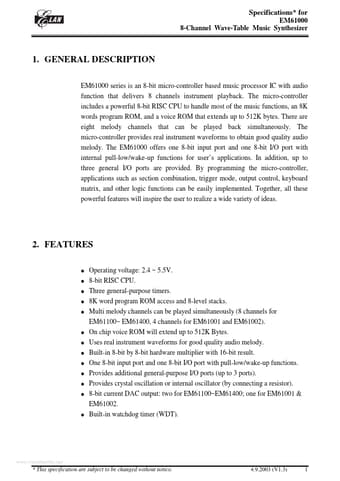

Preview of EM61000 PDF

Datasheet Details

Part number:

EM61000

Manufacturer:

ELAN Microelectronics

File Size:

1.21 MB

Description:

8-channel wave-table music synthesizer.
