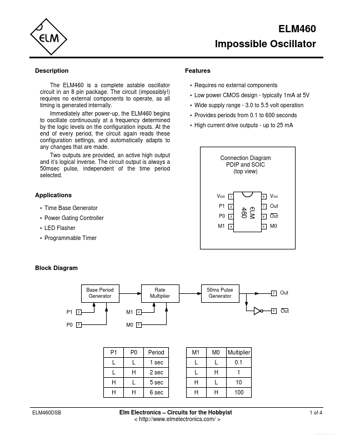

ELM460 Datasheet, Oscillator, ELM

✔ ELM460 Features

Requires no external components
Low power CMOS design - typically 1mA at 5V
Wide supply range - 3.0 to 5.5 volt operation
Provides periods from 0.1 to 600 seconds

✔ ELM460 Application

Time Base Generator
Power Gating Controller
LED Flasher
Programmable Timer VDD P1 P0 M1 1 2 3 4 8

PDF File Details

ELM manufacturer logo

Part number:

ELM460

Manufacturer:

ELM

File Size:

41.88kb

Download:

📄 Datasheet

Description:

Impossible oscillator. The ELM460 is a complete astable oscillator circuit in an 8 pin package. The circuit (impossibly!) requires no external components to
