EM4069 - 128-bit Read/Write Contactless Identification

Description

EM4069 (previously named P4069) is a CMOS integrated circuit intended for use in electronic Read/Write RF transponders, with an optional lock function to disable EEPROM write operations.

Features

  • 128 bit EEPROM organized in 8 words of 16 bits 64 bit fixed code memory array laser programmed OTP feature convert EEPROM words in read only Power on Reset sequence Power-check for EEPROM write operation Data transmission performed by Amplitude Modulation (IC to reader and reader to IC) Data encoding : Manchester or BI-Phase (FDX-B) Transmission reader to chip: typically 65% AM modulation Data rate : 64 or 32 RF field periods per bit (2 kBaud or 4 kBaud at 125 kHz) 78 pF resonant capacitor integ.

📥 Download Datasheet

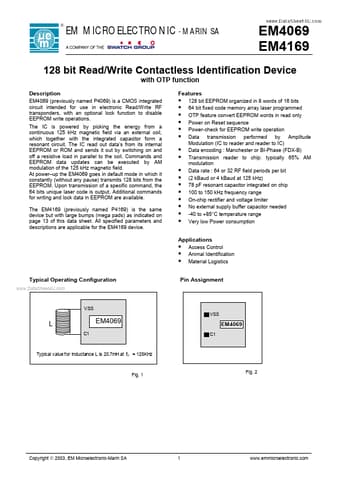

Datasheet preview – EM4069

Datasheet Details

Part number EM4069
Manufacturer EM Microelectronic
File Size 302.85 KB
Description 128-bit Read/Write Contactless Identification
Datasheet download datasheet EM4069 Datasheet
Additional preview pages of the EM4069 datasheet.

📁 Similar Datasheet

  • EM4022 - Multi Frequency Contactless Identification Device Anti-Collision compatible (EM Microelectronic - MARIN SA)
  • EM4025 - Read Only Contactless Identification Device with Anticollision (EM Microelectronic - MARIN SA)
  • EM4026 - Read only Contactless Identification Device (EM Microelectronic - MARIN SA)
  • EM4034 - 13.56MHz ISO15693 Standard Compliant Contactless RW Identification Device (EM Microelectronic - MARIN SA)
  • EM4035 - 13.56MHz CRYPTO ISO15693 Compliant Contactless Identification Device (EM Microelectronic - MARIN SA)
  • EM4 - Electronic Indicator (ETC)
  • EM4 - Tube (ETC)
  • EM4 - Tuning Indicator (Philips)
  • EM4125 - Read Only Contactless Identification (EM Microelectronic - MARIN SA)
  • EM428M1644RTA - Double DATA RATE SDRAM (Eorex)
Other Datasheets by EM Microelectronic
  • EM4033 - 64-bit Read Only CMOS
  • EM4094 - Analog Front-End
  • EM4095 - Read / Write Analog Front-End
  • EM4097 - READ/WRITE ANALOG FRONT-END
  • EM4100 - Read Only Contactless Identification Device
  • EM4102 - Read Only Contactless Identification
  • EM4123 - Read-only UHF RFID IC
  • EM4126 - RFID

Full PDF Text Transcription

Click to expand full text
EM MICROELECTRONIC - MARIN SA EM4069 EM4169 128 bit Read/Write Contactless Identification Device with OTP function Description EM4069 (previously named P4069) is a CMOS integrated circuit intended for use in electronic Read/Write RF transponders, with an optional lock function to disable EEPROM write operations. The IC is powered by picking the energy from a continuous 125 kHz magnetic field via an external coil, which together with the integrated capacitor form a resonant circuit. The IC read out data’s from its internal EEPROM or ROM and sends it out by switching on and off a resistive load in parallel to the coil. Commands and EEPROM data updates can be executed by AM modulation of the 125 kHz magnetic field.
