EM6812 Ultra Low Power 8-bit FLASH Microcontroller

EM6812 Description

R EM MICROELECTRONIC - MARIN SA EM6812 Ultra Low Power 8-bit FLASH Microcontroller .
The EM6812 is designed to be battery operated for extended lifetime applications.

EM6812 Features

* ! Green mold / leadfree package ! True low current: 120 µA active mode @ 3V, 1MHz 6 µA standby mode, RC on 0.8 µA standby mode, RC off 0.16 µA sleep mode ! Up to 2.5 MIPS at 5MHz ! On-chip brownout detection ! Powercheck functions at start-up ! 8-level Supply Voltage Level Detection (SVLD)

EM6812 Applications

* Brownout and powercheck functions ensure reliable operation at or near undervoltage conditions, offering greater reliability in complex operation modes. Each of the 16 I/Os is freely programmable and the microcontroller has a dual quartz and trimmable RC oscillator up to 10MHz. It has an 8-bit RISC

📥 Download Datasheet

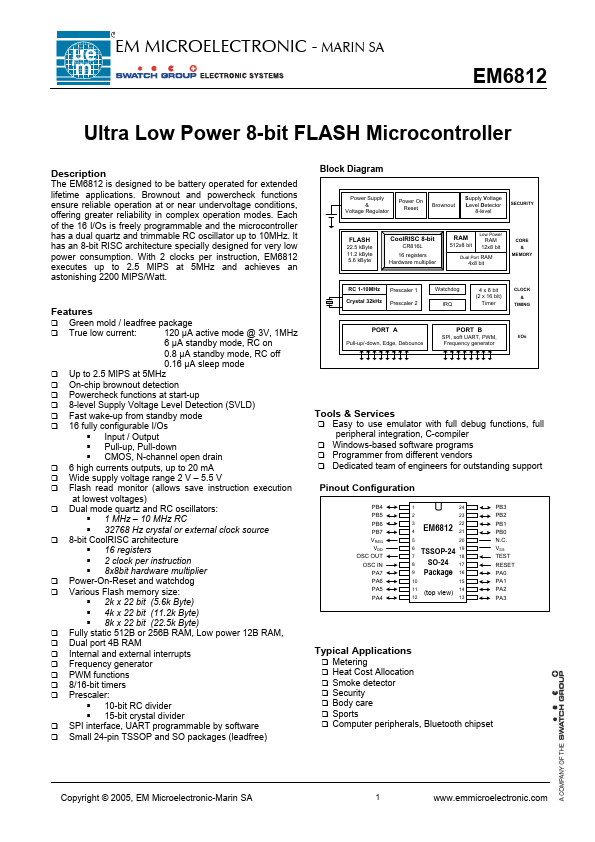

Preview of EM6812 PDF

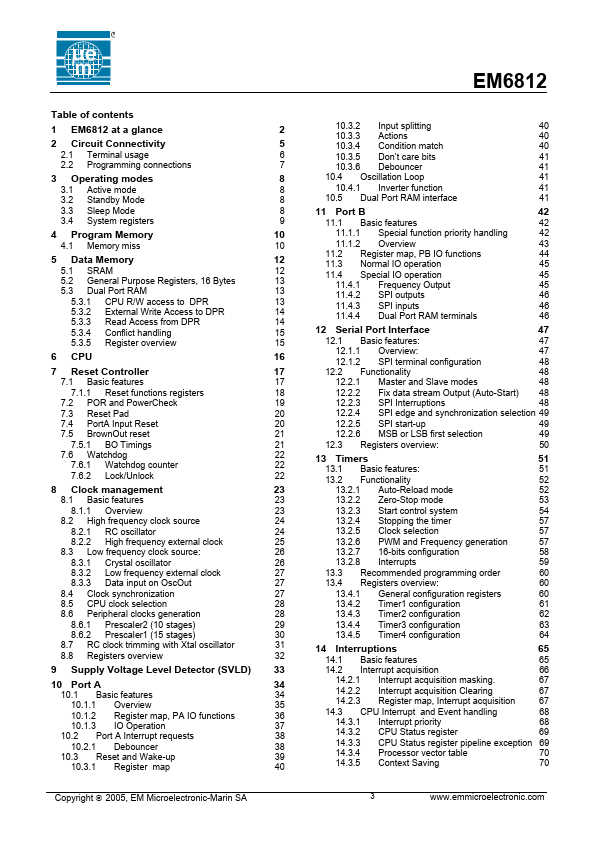

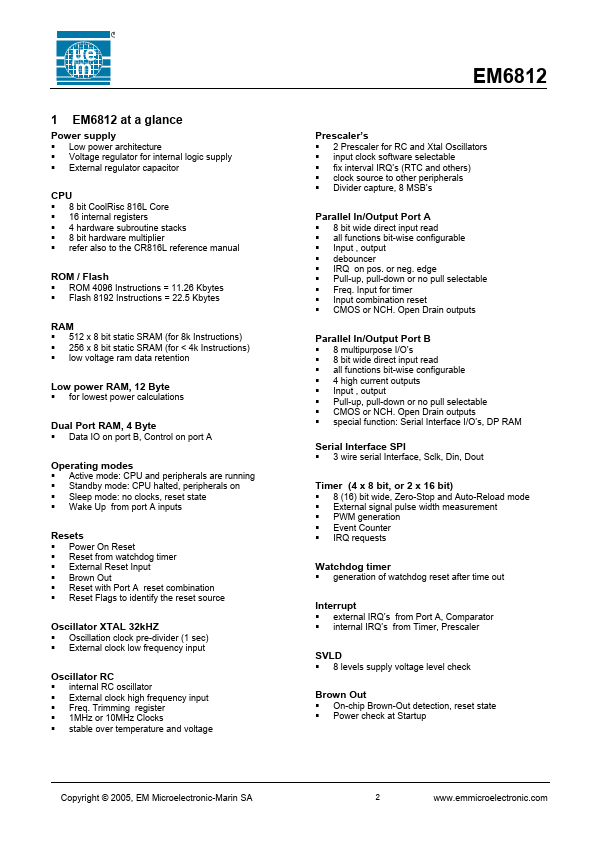

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EM6812
Manufacturer
EM Microelectronic
File Size
1.74 MB
Datasheet
EM6812-EMMicroelectronic.pdf
Description
Ultra Low Power 8-bit FLASH Microcontroller
