EMTCG128-3G Datasheet - EM Microelectronic

EMTCG128-3G - 128KB Flash Smart Card IC

EM MICROELECTRONIC - MARIN SA Theseus TM Cipher Gold 128-3G EMTCG128-3G www.DataSheet4U.com 128KB Flash Smart Card IC + Cryptography Engine Environment ‰ Voltage Supply Class A, B: 3.0V to 5.0V ± 10% ‰ -25 to +85 °C Operating Temperature ‰ Max supply current 6mA @ 30MHz, Class B ‰ > 4 kV ESD Protection HBM CPU ‰ Software compatible CMOS 80X51 industry standard ‰ Local RAM 256 B (data, idata memory spaces) ‰ “far” addressing support extending ‘xdata’ up to 8MB ‰ Accelerated architecture with

EMTCG128-3G Features

* of the device that are denied to applications that can be loaded into the device at manufacture or in the field. With up to a 130KB (RAM+GPNVM512+EEPROM) of on chip memories EMTCG128-3G provides highly flexible memory partitioning between code and data. So called GPNVM512 standing for General Purpos

EMTCG128-3G_EMMicroelectronic.pdf

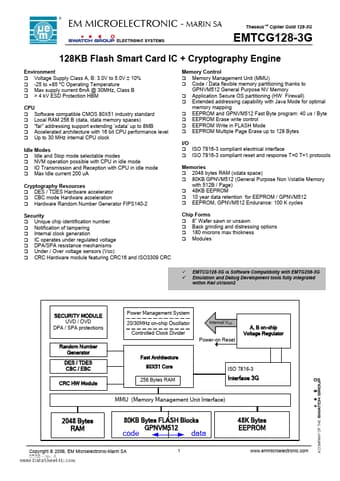

Preview of EMTCG128-3G PDF
EMTCG128-3G Datasheet Preview Page 2 EMTCG128-3G Datasheet Preview Page 3

Datasheet Details

Part number:

EMTCG128-3G

Manufacturer:

EM Microelectronic

File Size:

207.45 KB

Description:

128kb flash smart card ic.
