EMTCG256-3G Datasheet - EM Microelectronic

EMTCG256-3G 256KB Flash Smart Card IC

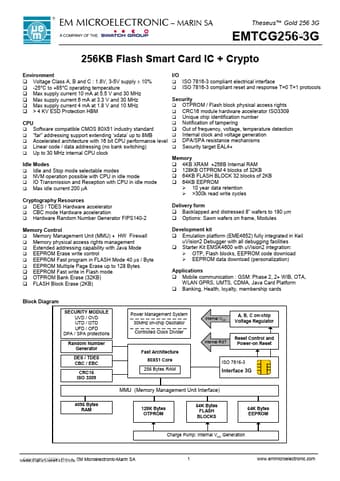

EM MICROELECTRONIC MARIN SA Theseus™ Gold 256 3G EMTCG256-3G www.DataSheet4U.com 256KB Flash Smart Card IC + Crypto Environment Voltage Class A, B and C : 1.8V, 3-5V supply ± 10% -25°C to +85°C operating temperature Max supply current 10 mA at 5.5 V and 30 MHz Max supply current 6 mA at 3.3 V and 30 MHz Max supply current 4 mA at 1.8 V and 10 MHz > 4 KV ESD Protection HBM I/O ISO 7816-3 compliant electrical interface ISO 7816-3 compliant reset and response T=0 T=1 protocols Securit.

EMTCG256-3G Features

* of the device that are denied to applications that can be loaded into the device at manufacture or in the field. The Secure Operating System allocates to each application programme, areas of the memory resources of the device. The hardware then ensures that when the application code is executing onl
