H4006 Datasheet - EM Microelectronic

Read Only Contactless Identification Device

H4006 Features

* n n n n n n n n n n Operating frequency range 10 MHz to 15 MHz RF interface optimized for 13.56 MHz operation Laser programmed memory array (64 data bit + 16 CRC bit) Modulator switch designed to preserve supply voltage Miller coding Default data rate is 26484 Baud Other data rates possible (mask pr

H4006 General Description

The H4006 is a CMOS integrated circuit intended for use in electronic Read Only transponders. The exited coil connected to the device generates the power supply via a Graetz bridge and an integrated decoupling capacitor. The clock used for the logic is also extracted from the coil. The logic is main.

H4006 Datasheet (265.63 KB)

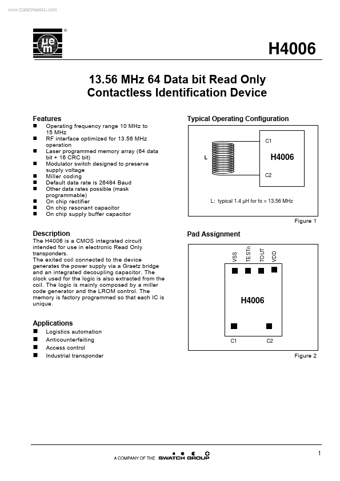

H4006 Datasheet Preview — Preview of H4006 PDF

Datasheet Details

Part number:

H4006

Manufacturer:

EM Microelectronic

File Size:

265.63 KB

Description:

Read only contactless identification device.
