H40519MN Datasheet - M-TEK

H40519MN 10/100 BASE-T TRANSFORMER

M-TEK http://www.mag-tek.com.tw 10/100 BASE-T TRANSFORMER MODULES F Quad Port Transformer Modules Designed For 10/100 Base-Tx MultiPort Hub Applications. F Compliant With IEEE 802.3 and ANSI X3.236 Standard Including Baseline Wander Compensation Specification Of 350uH OCL When Biased at 8mA From O°C to 70°C. F Low Profile Surface Mount Packaging Designed For Hi-Temp Reflow Process (250°C peak). F For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C ( Operating Temperature : 0°C to 70.

H40519MN Datasheet (150.22 KB)

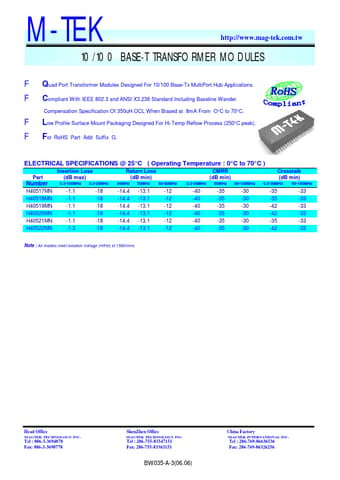

Preview of H40519MN PDF
H40519MN Datasheet Preview Page 2 H40519MN Datasheet Preview Page 3

Datasheet Details

Part number:

H40519MN

Manufacturer:

M-TEK

File Size:

150.22 KB

Description:

10/100 base-t transformer.
