2806, 77-Channel CATV Limited Distance Solution

2806 77 Channel CATV Limited Distance Solution (LDS) DATASHEET | JULY 2013 FIBER OPTICS .
Flange Mount Transmitter, +4.

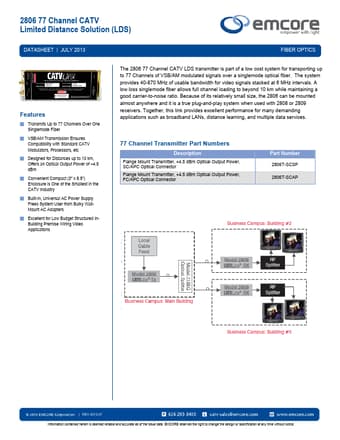

datasheet Preview Page 1 from Datasheet4u.com

2806-EMCORE.pdf

2806 Datasheet Preview — Preview of 2806 PDF

Datasheet Details

Part number:

2806

Manufacturer:

EMCORE

File Size:

302.96 KB

Description:

77-Channel CATV Limited Distance Solution

Features

* Transmits Up to 77 Channels Over One Singlemode Fiber VSB/AM Transmission Ensures Compatibility with Standard CATV Modulators, Processors, etc Designed for Distances up to 10 km, Offers an Optical Output Power of +4.5 dBm Convenient Compact (3” x 8.5”) Enclosure is One of the Smallest in the CATV In

Applications

* The 2806 77 Channel CATV LDS transmitter is part of a low cost system for transporting up to 77 Channels of VSB/AM modulated signals over a singlemode optical fiber. The system provides 40-870 MHz of usable bandwidth for video signals stacked at 6 MHz intervals. A low loss singlemode fiber allows f
