5021D-C11

13GHz 250ns Max Internal Fiber Delay Line System

5021D-C11 Features

* Bandwidth to 13 GHz

* High-Dynamic-Range

* -40 to +65°C

* Delays to 250 Nanoseconds

* Flat Frequency Response

* Low Phase Noise The 5021D-C11 13 GHz fiber optic delay line delivers unmatched performance for radar testing, signal processing, phased a

5021D-C11 General Description

Delay Line, 13 GHz, SMA, Delay Time to 250 ns Note1: XXXXXX designates required delay time. Example: 5021D-C11-000250 is a 13 GHz system with 250 ns delay MICROWAVE Laser Safety This product meets the appropriate standard in Title 21 of the Code of Federal Regulations (CFR). FDA/CDRH Class 1M las.

5021D-C11 Datasheet (658.44 KB)

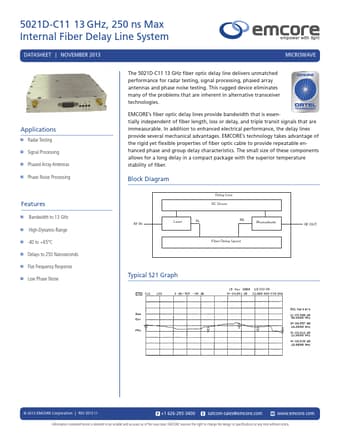

Preview of 5021D-C11 PDF

Datasheet Details

Part number:

5021D-C11

Manufacturer:

EMCORE

File Size:

658.44 KB

Description:

13ghz 250ns max internal fiber delay line system.
5021D-C11 13 GHz, 250 ns Max Internal Fiber Delay Line System

*

*

*

*

*

*

*

*

.
