B59201 - (B59101 - B59301) Overcurrent protection

Download the B59201 datasheet PDF. This datasheet also covers the B59101 variant, as both devices belong to the same (b59101 - b59301) overcurrent protection family and are provided as variant models within a single manufacturer datasheet.

Features

  • I Molded epoxy encapsuation, lead-free tinned solder terminals I Suitable for wave and reflow soldering I Suitable for automatic placement Delivery mode I Blister tape, 330-mm reel Termination Dimensions (mm) Tolerances ± 0,5 mm Type P 1101 P 1201 P 1301 h 3,2 3,2 3,2 b 6,3 6,3 8,0 I 8,0 8,0 10,0 x 1,7 1,7 2,3 Size 3225 3225 4032 General technical data Rated www. DataSheet4U. com Max. operating voltage (TA = 60 °C) voltage Switching cycles (typ. ) Resistance tolerance Operating temperature rang.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B59101_EPCOS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B59201
Manufacturer EPCOS
File Size 109.79 KB
Description (B59101 - B59301) Overcurrent protection
Datasheet download datasheet B59201 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B59215J0130A020 PTC thermistors TDK
B59217J0130A020 PTC thermistors TDK
B59219J0130A020 PTC thermistors TDK
B59412C1130B070 PTC thermistors TDK
B59421 PTC thermistors as limit temperature sensors TDK

Other Datasheets by EPCOS

Part Number Description
B59203 (B59xxxC1) Degaussing of picture tubes
B59205 (B59xxxT) Double Mono PTC Thermistors
B59205 (B59xxxC1) Degaussing of picture tubes
B59209J Degaussing of picture tubes
B59250 (B59xxxC1) Degaussing of picture tubes

Full PDF Text Transcription

Click to expand full text

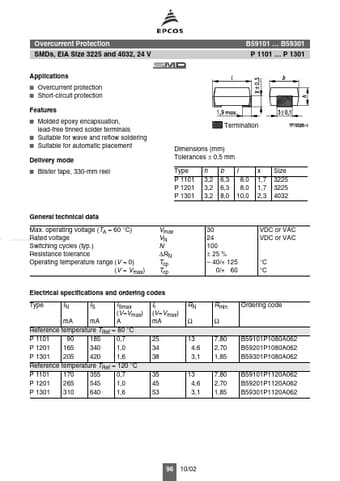

Overcurrent Protection SMDs, EIA Size 3225 and 4032, 24 V Applications I Overcurrent protection I Short-circuit protection B59101 … B59301 P 1101 … P 1301 Features I Molded epoxy encapsuation, lead-free tinned solder terminals I Suitable for wave and reflow soldering I Suitable for automatic placement Delivery mode I Blister tape, 330-mm reel Termination Dimensions (mm) Tolerances ± 0,5 mm Type P 1101 P 1201 P 1301 h 3,2 3,2 3,2 b 6,3 6,3 8,0 I 8,0 8,0 10,0 x 1,7 1,7 2,3 Size 3225 3225 4032 General technical data Rated www.DataSheet4U.com Max. operating voltage (TA = 60 °C) voltage Switching cycles (typ.
