B8050 - SAW Components

Datasheet Summary

Features

  • s Package size 2.5.
  • 2.0 mm2, package height 0.5 mm max. s RoHS compatible s Package for Surface Mount Technology (SMT) s Ni, gold-plated terminals s Electrostatic Sensitive Device (ESD) Pin configuration s s s s s 3 1 6 2, 4, 5 7, 8, 9 TX Input RX Output ANT Antenna To be grounded To be grounded Please read cautions and warnings and important notes at the end of this document. 2 April 28, 2008 SAW Components SAW Duplexer Data Sheet Characteristics Temperature range for specificatio.

📥 Download Datasheet

Datasheet preview – B8050

Datasheet Details

Part number B8050
Manufacturer EPCOS
File Size 372.53 KB
Description SAW Components
Datasheet download datasheet B8050 Datasheet
Additional preview pages of the B8050 datasheet.

📁 Similar Datasheet

  • B805 - 2SB805 (Renesas)
  • B80-C1000 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • B80-C1500R - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • B800 - 2SB800 (Renesas)
  • B804 - 2SB804 (Renesas)
  • B806 - 2SB806 (Renesas)
  • B80C1000 - 1 Amp. Glass Passivated Bridge Rectifier (FAGOR)
  • B80C1000G - Glass Passivated Single-Phase Bridge Rectifier (Vishay)
  • B80C1000G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (General Semiconductor)
  • B80C1500G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (General Semiconductor)
Other Datasheets by EPCOS

    Full PDF Text Transcription

    Click to expand full text

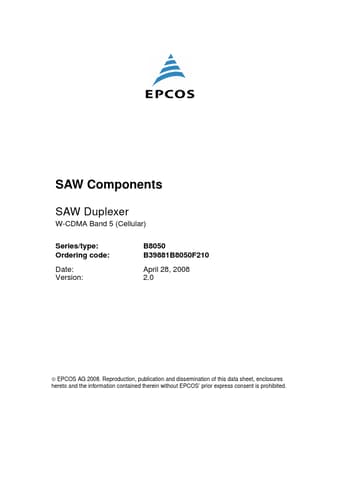

    SAW Components SAW Duplexer W-CDMA Band 5 (Cellular) Series/type: Ordering code: Date: Version: B8050 B39881B8050F210 April 28, 2008 2.0 © EPCOS AG 2008. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components SAW Duplexer Data Sheet Application s Low-loss SAW duplexer for mobile telephone s s s s B8050 836.5 / 881.5 MHz WCDMA Band 5 (Cellular) systems Low insertion attenuation Low amplitude ripple Usable passband 25 MHz Very small size and low height Features s Package size 2.5 * 2.0 mm2, package height 0.5 mm max.
