B80-C1500R - SILICON BRIDGE RECTIFIERS

EIC discrete Semiconductors

📥 Download Datasheet

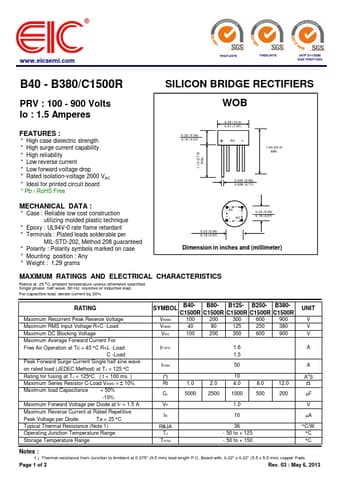

B80-C1500R Datasheet Preview — Preview of B80-C1500R PDF

datasheet Preview Page 2

Datasheet Details

Part number	B80-C1500R
Manufacturer	EIC discrete Semiconductors
File Size	101.27 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	B80-C1500R_EICdiscreteSemiconductors.pdf

B80-C1500R Product details

Features

:.
High case dielectric strength.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Rated isolation-voltage 2000 VAC.
Ideal for printed circuit board.
Pb / RoHS Free 0.22 (5.59) 0.18 (4.57) WOB 0.39 (10.0) 0.31 (7.87) + AC - 1.00 (25.4) MIN. 1.10 (27.9) MIN. 0.034 (0.86) 0.028 (0.71).
