B80C1500G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

📥 Download Datasheet Datasheet Preview Page 1

Description

B40C1500G THRU B380C1500G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 65 to 600 Volts Forward Current - 1.5 Amperes Case Style WO.

📥 Download Datasheet

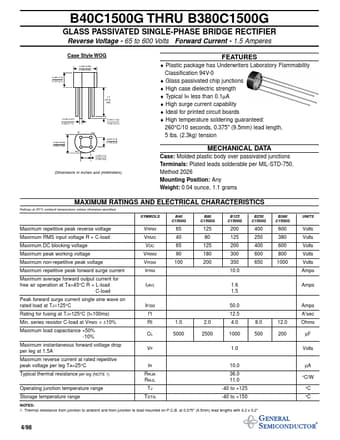

Preview of B80C1500G PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
B80C1500G
Manufacturer
General Semiconductor
File Size
146.14 KB
Datasheet
B80C1500G_GeneralSemiconductor.pdf
Description
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated chip junctions
* High case dielectric strength
* Typical IR less than 0.1µA
* High surge current capability
* Ideal for printed circuit boards
