B80C800DM

MINIATURE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

B80C800DM Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

* Glass passivated chip junctions

* Surge overload rating of 45 Amperes peak

* Ideal for printed circuit boards

* High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs.

B80C800DM Datasheet (84.32 KB)

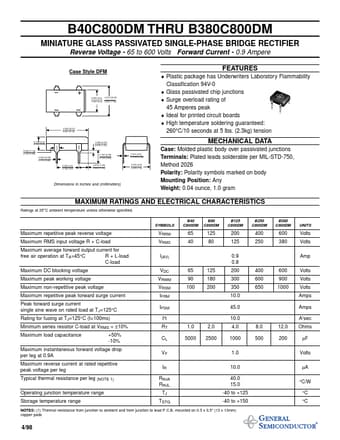

Preview of B80C800DM PDF

Datasheet Details

Part number:

B80C800DM

Manufacturer:

General Semiconductor

File Size:

84.32 KB

Description:

Miniature glass passivated single-phase bridge rectifier.
B40C800DM THRU B380C800DM MINIATURE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 65 to 600 Volts Forward Current - 0.9 Ampere Case.
