B8103 Datasheet - EPCOS

B8103 SAW Components

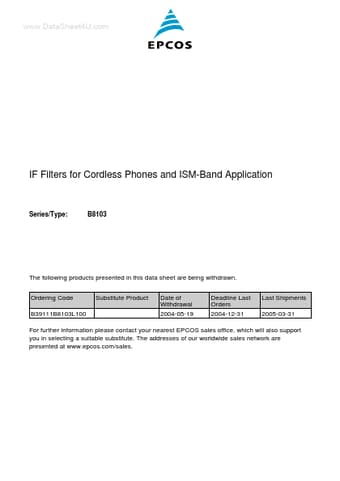

www.DataSheet4U.com IF Filters for Cordless Phones and ISM-Band Application Series/Type: B8103 The following products presented in this data sheet are being withdrawn. Ordering Code B39111B8103L100 Substitute Product Date of Withdrawal 2004-05-19 Deadline Last Orders 2004-12-31 Last Shipments 2005-03-31 For further information please contact your nearest EPCOS sales office, which will also support you in selecting a suitable substitute. The addresses of our worldwide sales network are prese.

B8103 Features

* s s s s s IF filter for cordless phone Channel selection in ISM system Surface Mounted Technology (SMT) Standard IC small outline (SO) package Balanced and unbalanced operation possible Terminals s Tinned CuFe alloy Dimensions in mm, approx. weight 0,4 g Pin configuration 8 7 16 17 1,4,5,6,9,10,
