B9401 - SAW Components

Datasheet Summary

Description

and specifications contained in this publication are still applicable before or when you place an order.

We also reserve the right to discontinue production and delivery of products.

Consequently, we cannot guarantee that all products named in this publication will always be available.

Features

  • Package size 1.4 x1.1 x 0.4 mm3 RoHS compliant Approx. weight 0.003 g Package for Surface Mount Technology (SMT) s Ni, gold-plated terminals s s s s 0,325 2 1 3 0,575 0,25 bottom view 5 0,5 0,5 4 0,4 +/.
  • 0,05 side view 1,4 1,1 top view Pin configuration s 1 s 3,4 s 2,5 Input, unbalanced Output balanced To be grounded Please read cautions and warnings and important notes at the end of this document. 2 Oct 21, 2005 SAW Components Low-Loss Filter for Mobile Communication Data She.

📥 Download Datasheet

Datasheet preview – B9401

Datasheet Details

Part number B9401
Manufacturer EPCOS
File Size 113.20 KB
Description SAW Components
Datasheet download datasheet B9401 Datasheet
Additional preview pages of the B9401 datasheet.

📁 Similar Datasheet

  • B941 - 2SB941 (Panasonic)
  • B941A - 2SB941A (Panasonic)
  • B942 - 2SB942 (Panasonic)
  • B943 - 2SB943 (Panasonic)
  • B945 - 2SB945 (Panasonic Semiconductor)
  • B949 - 2SB949 (Panasonic Semiconductor)
Other Datasheets by EPCOS

Full PDF Text Transcription

Click to expand full text

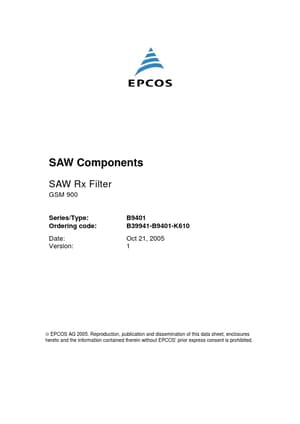

www.DataSheet4U.com SAW Components SAW Rx Filter GSM 900 Series/Type: Ordering code: Date: Version: B9401 B39941-B9401-K610 Oct 21, 2005 1 © EPCOS AG 2005. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components Low-Loss Filter for Mobile Communication Data Sheet Application s Low-loss RF filter for mobile telephone s s s s s s B9401 942.50 MHz GSM systems, receive path (RX) Impedance transform from 50 Ω to 150 Ω Unbalanced to balanced operation Very low insertion attenuation Low amplitude ripple Usable passband 35 MHz Suitable for GPRS class 1 to 12 Features Package size 1.4 x1.1 x 0.4 mm3 RoHS compliant Approx. weight 0.
