RTC-8564JE Datasheet - EPSON Electronics

RTC-8564JE I2C-Bus INTERFACE REAL TIME CLOCK MODULE

Real time clock module Epson Toyocom Low current consumption I2C-Bus INTERFACE REAL TIME CLOCK MODULE RTC - 8564 JE / NB Built in frequency adjusted 32.768 kHz crystal unit. Interface Type ‫ ׃‬I2C-Bus Interface (400 kHz) Operating voltage range ‫ ׃‬1.8 V to 5.5 V Timekeeper voltage range ‫ ׃‬1.0 V to 5.5 V / -20 °C to +70 °C Low backup current ‫ ׃‬275 nA / 3.0 V(Typ.) 32.768 kHz frequency output function ‫ ׃‬C-MOS output With Cont.

RTC-8564JE Datasheet (373.64 KB)

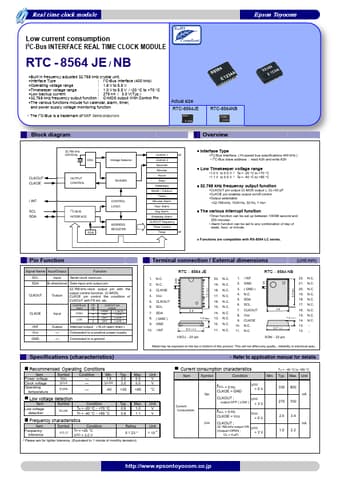

RTC-8564JE Datasheet Preview — Preview of RTC-8564JE PDF

Datasheet Details

Part number:

RTC-8564JE

Manufacturer:

EPSON Electronics

File Size:

373.64 KB

Description:

I2c-bus interface real time clock module.
