AD52090

Mono Class-D Audio Amplifier

ESMT

AD52090 Features

* Single supply voltage 4.5V ~ 26V for loudspeaker driver Built-in LDO output 5V for others

* Supports Multiple Output Configurations BTL Mode: 30W/CH into 8at 24 V BTL Mode: 30W/CH into 4at 18 V PBTL Mode: 60W/CH into 4at 24 V PBTL Mode: 45W/CH into 4at 18 V PBTL Mode: 60W/CH into 2

AD52090 General Description

The AD52090 is a high efficiency stereo class-D audio amplifier with adjustable power limit function.The loudspeaker driver operates from 4.5V~26V supply voltage and analog circuit operates at 5V supplyvoltage. It can deliver 30W/CH output power into 4or 8loudspeakerwithin 1% THD+N at 24V supply .

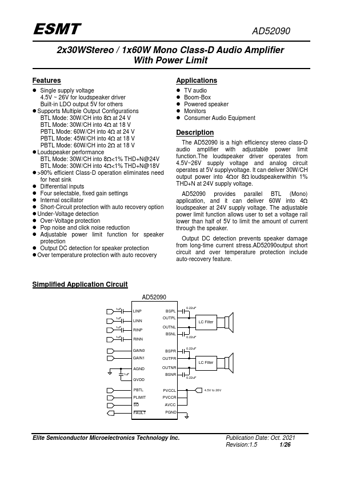

AD52090 Datasheet (1.16 MB)

AD52090 Datasheet Preview — Preview of AD52090 PDF

Datasheet Details

Part number:

AD52090

Manufacturer:

ESMT

File Size:

1.16 MB

Description:

Mono class-d audio amplifier.
