ET1511B, ET1511A Infrared Filter Switch Driver

📥 Download Datasheet  Datasheet Preview Page 1

Description

ESMT Infrared Filter Switch Driver ET1511A/B .

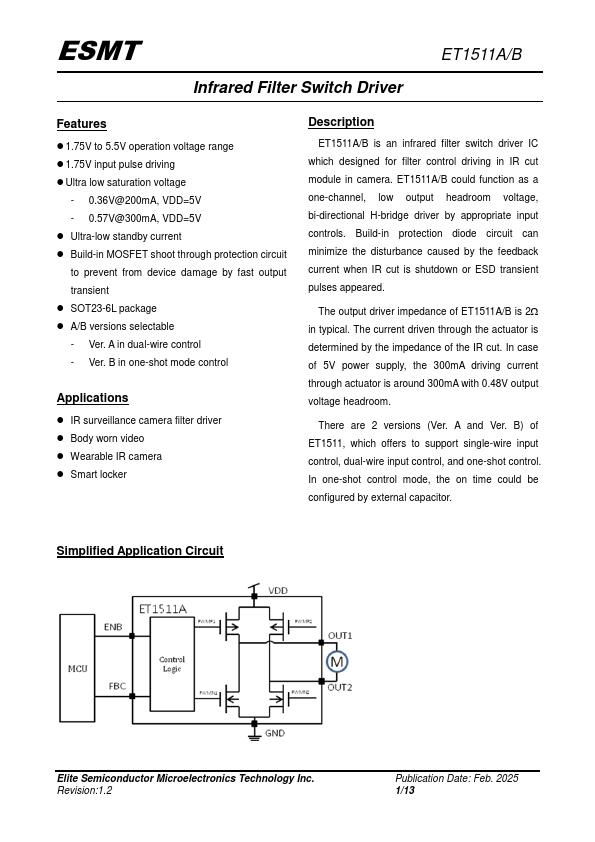

ET1511A/B is an infrared filter switch driver IC which designed for filter control driving in IR cut module in camera.

📥 Download Datasheet

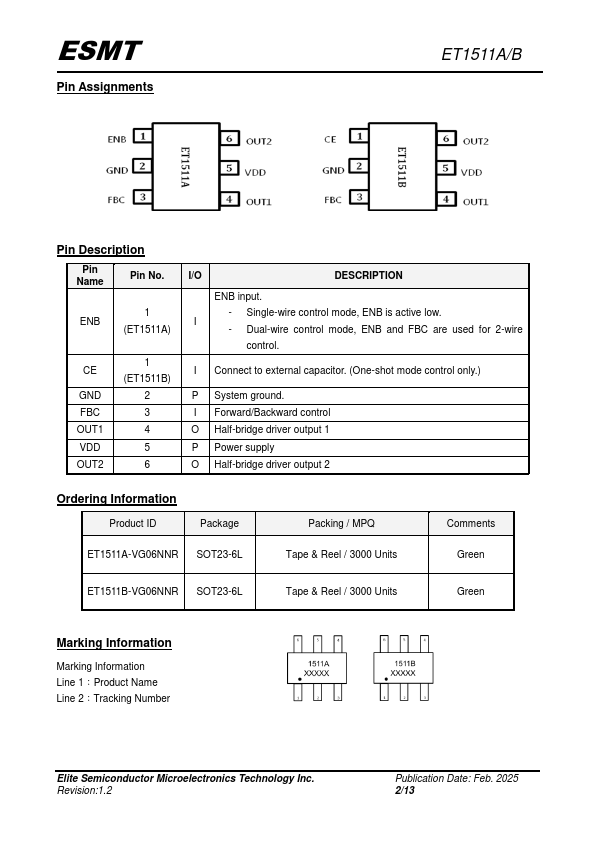

This datasheet PDF includes multiple part numbers: ET1511B, ET1511A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ET1511B, ET1511A
Manufacturer
ESMT
File Size
698.22 KB
Datasheet
ET1511A-ESMT.pdf
Description
Infrared Filter Switch Driver
Note
This datasheet PDF includes multiple part numbers: ET1511B, ET1511A.
Please refer to the document for exact specifications by model.

Features

* 1.75V to 5.5V operation voltage range
* 1.75V input pulse driving
* Ultra low saturation voltage - 0.36V@200mA, VDD=5V - 0.57V@300mA, VDD=5V
* Ultra-low standby current
* Build-in MOSFET shoot through protection circuit to prevent from device damage by fast output transient

Applications

* IR surveillance camera filter driver
* Body worn video
* Wearable IR camera
