FC51L08SFSA - eMMC Flash Memory

ESMT

📥 Download Datasheet

FC51L08SFSA Datasheet Preview — Preview of FC51L08SFSA PDF

Datasheet Details

Part number	FC51L08SFSA
Manufacturer	ESMT
File Size	1.07 MB
Description	eMMC Flash Memory
Datasheet	FC51L08SFSA-ESMT.pdf

FC51L08SFSA Product details

Description

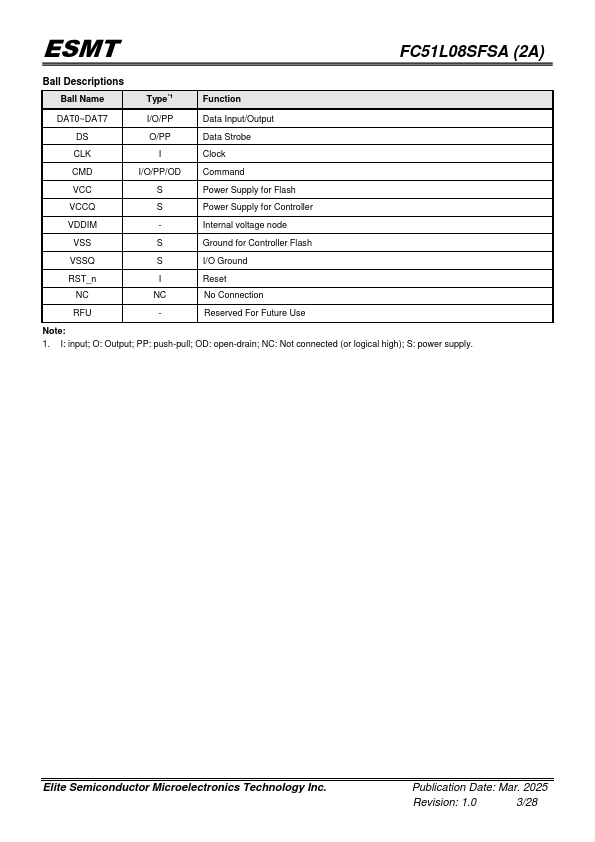

Ball Name Type 1 Function DAT0~DAT7 DS CLK CMD VCC VCCQ VDDIM I/O/PP O/PP I I/O/PP/OD S S - Data Input/Output Data Strobe Clock Command Power Supply for Flash Power Supply for Controller Internal voltage node VSS S Ground for Controller Flash VSSQ S I/O Ground RST_n I Reset NC NC No Connection RFU - Reserved For Future Use Note: 1. I: input; O: Output; PP: push-pull; OD: open-drain; NC: Not connected (or logical high); S: power supply.Elite Semiconductor Microelectron

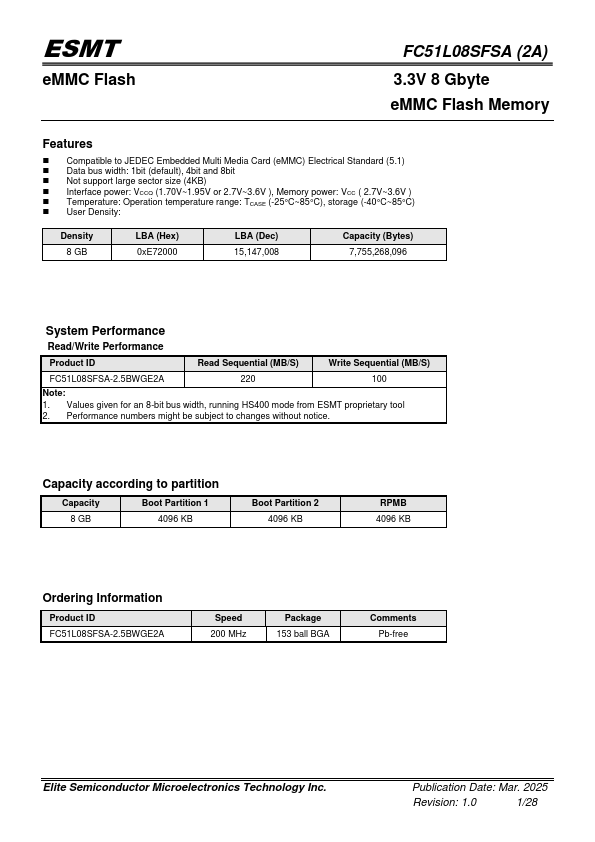

Features

Compatible to JEDEC Embedded Multi Media Card (eMMC) Electrical Standard (5.1).
Data bus width: 1bit (default), 4bit and 8bit.
Not support large sector size (4KB).
Interface power: VCCQ (1.70V~1.95V or 2.7V~3.6V ), Memory power: VCC ( 2.7V~3.6V ).
Temperature: Operation temperature range: TCASE (-25°C~85°C), storage (-40°C~85°C).
User Density: Density 8 GB LBA (Hex) 0xE72000 LBA (Dec) 15,147,008 Capacity (Bytes) 7,755,268,096 System Performance Read/Write Per.
